Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 axis glue dispenser machine, automatic PCB glue dispenser, PCB depaneling glue applicator


Gewicht:	70 kg	Stroom:	5 kW
Spanning:	220V, 110V	Maximale snelheid:	400 mm/s
Werkbereik:	100 mm tot 500 mm	Werkgebied:	300300100 mm
Bewegende snelheid X/Y:	500 mm/sec	Bewegingssnelheid Z:	400 mm/sec
Machinegrootte:	537560820 mm	Kerncomponenten:	PLC, Versnellingsbak, Motor, Pomp
Materiaal:	Gegoten aluminium profiel	Motortype:	Japanse Xinrong stappenmotor
Lineaire gids:	Taiwan zilveren lineaire geleider	Synchrone Riem:	Italiaans geïmporteerd
Kabeltype:	Geïmporteerde vouwbestendige afgeschermde kabel

Gewicht:	70 kg
Stroom:	5 kW
Spanning:	220V, 110V
Maximale snelheid:	400 mm/s
Werkbereik:	100 mm tot 500 mm
Werkgebied:	300300100 mm
Bewegende snelheid X/Y:	500 mm/sec
Bewegingssnelheid Z:	400 mm/sec
Machinegrootte:	537560820 mm
Kerncomponenten:	PLC, Versnellingsbak, Motor, Pomp
Materiaal:	Gegoten aluminium profiel
Motortype:	Japanse Xinrong stappenmotor
Lineaire gids:	Taiwan zilveren lineaire geleider
Synchrone Riem:	Italiaans geïmporteerd
Kabeltype:	Geïmporteerde vouwbestendige afgeschermde kabel

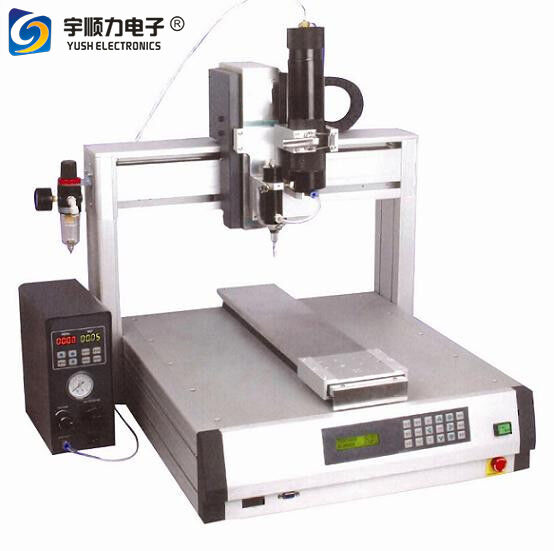

Automatic 3 Axis Glue Dispenser

Product Overview

Compact desktop three-axis dispensing machine designed for efficient batch assembly and distribution operations.

Key Features

Space-saving desktop design ideal for batch assembly operations
High-speed performance at 400 mm/s with exceptional durability
Unique driving circuit eliminates dispensing offset for precision application
Manufacturer's technical expertise ensures application accuracy
Excellent straightness and high-definition tracking capabilities
Clean corner R-shape application without liquid residue or skew
Adjustable working range from 100 mm to 500 mm to suit various workspace requirements
USB connectivity for easy program file upload/download and data management
User-friendly operation interface with intuitive learning curve
CNC-processed machine tool ensures XYZ verticality and enhanced processing accuracy

Hot Melt Adhesive Machine Advantages

Die-cast aluminum profile structure for aesthetic appearance and structural consistency
CNC-machined components ensuring part accuracy and uniformity
Standardized assembly process with 100% strict calibration standards
Premium core components: Japanese Xinrong stepper motor, Italian imported synchronous belt, Taiwan silver linear guide
Smooth, quiet operation during high-speed glue dispensing
Special assembly process for synchronous pulley and motor with Japanese technology belts
Modular assembly design allowing quick replacement of individual components
Import brand fold-proof shielded cables for reliable operation and safety
