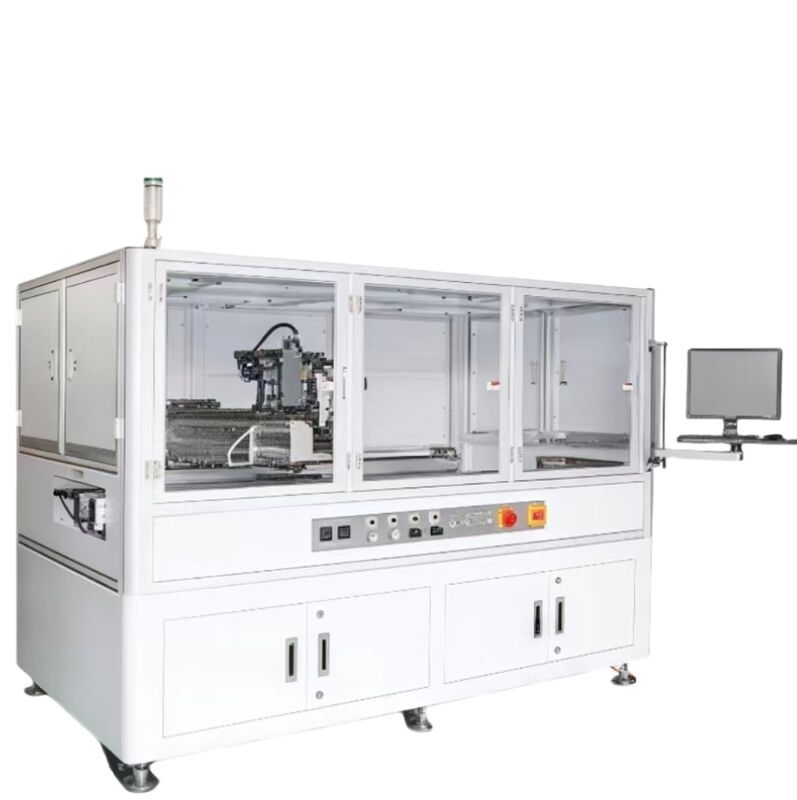

Name: YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-D400
Price: 9.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YS-D400

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $8,800-10,800 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high precision LED lens dispensing machine, automatic PCB depaneling machine, stable YS-D400 dispensing machine


Gewicht:	650 kg	Distributiebereik:	X400Y400Z60mm
Visie-methode:	CCD	Schoonmaaksysteem:	Automatisch
Injectieventiel snelheid:	200 punten/s	Voeding:	1 PH AC 220V 50/60Hz (optie: 110V tot 230V)
Dimensie:	L770B1200H1500mm	Kerncomponenten:	Motor, pomp
Plattformmateriaal:	Marmer	Doseersysteem:	Naald/sproeiventiel
Kalibratienormen:	Elektronische weegschaal van 0,1 mg	Model:	YS-D400
Maximaal doseerbereik:	X1200Y400Z60mm	Maximaal gewicht:	1150 kg
Maximum afmeting:	L1690B1200H1500mm

Gewicht:	650 kg
Distributiebereik:	X400Y400Z60mm
Visie-methode:	CCD
Schoonmaaksysteem:	Automatisch
Injectieventiel snelheid:	200 punten/s
Voeding:	1 PH AC 220V 50/60Hz (optie: 110V tot 230V)
Dimensie:	L770B1200H1500mm
Kerncomponenten:	Motor, pomp
Plattformmateriaal:	Marmer
Doseersysteem:	Naald/sproeiventiel
Kalibratienormen:	Elektronische weegschaal van 0,1 mg
Model:	YS-D400
Maximaal doseerbereik:	X1200Y400Z60mm
Maximaal gewicht:	1150 kg
Maximum afmeting:	L1690B1200H1500mm

YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine

Platform System

Integral frame with marble platform supporting moving parts. Moving parts utilize imported accessories to ensure high accuracy and stability of equipment operation.

Dispensing System

Needle dispensing and spray valve dispensing options available
Spray valve dispensing can be fixed or rotary
Optional CCD camera, laser altimeter, and glue sensor

Calibration System

0.1mg Electronic Scale
Scale and Ceramic Plate
Mechanical Height Detection
Vacuum Cleaning System
Gluing Cup

Technical Specifications

Model	YS-D400	YS-D600 (LENS)	YS-D1200 (LENS)
Dispensing Range	X400Y400Z60mm	X600Y600Z60mm	X1200Y400Z60mm
Vision Methodology	CCD
Cleaning System	Automatic
Injection Valve Speed	200 points/second
Power Supply	1 PH AC 220V 50/60Hz (Option: 110V to 230V)
Weight	650 kg	850 kg	1150 kg
Dimension	L770W1200H1500mm	L1065W1505H1500mm	L1690W1200H1500mm

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery. With advanced production and processing equipment, YUSH maintains an experienced development and manufacturing team where half of the personnel have over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. YUSH prioritizes product quality, safety, and innovation, producing high-quality, stable performance, and cost-effective products that improve production yields and enhance customer competitiveness. The company offers various PCB separating solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. With good quality and reasonable pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
