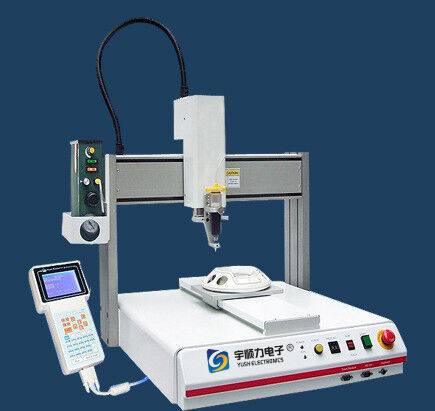

Name: Glue Dispensing Systems UV Dispensing Robot . Hot Melt Vision Glue Robot
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-S330
Price: 403.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YS-S330

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $7,800 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                UV glue dispensing robot, hot melt vision glue robot, PCB depaneling glue system


Gewicht:	70 kg	Werkgebied:	30030060 mm
Werkvochtigheid:	20~90% geen condensatie	Afmetingen:	485505610 mm
Spanning:	250W	Viscositeit van de lijmpomp:	al bijna viscositeit
Uitdelend hoofd:	één of meer op verzoek	Stroom:	220/110 V
Maximale snelheid:	500 mm/sec	Min. doseerhoeveelheid:	0,001 ml
Oplossing:	0,01 mm	Herhaalbaarheid:	+/-0,01 mm
Maat:	460450480 mm	Bijlen:	3 of 4
Afgiftepad:	ingesteld in robot of geïmporteerd

Gewicht:	70 kg
Werkgebied:	30030060 mm
Werkvochtigheid:	20~90% geen condensatie
Afmetingen:	485505610 mm
Spanning:	250W
Viscositeit van de lijmpomp:	al bijna viscositeit
Uitdelend hoofd:	één of meer op verzoek
Stroom:	220/110 V
Maximale snelheid:	500 mm/sec
Min. doseerhoeveelheid:	0,001 ml
Oplossing:	0,01 mm
Herhaalbaarheid:	+/-0,01 mm
Maat:	460450480 mm
Bijlen:	3 of 4
Afgiftepad:	ingesteld in robot of geïmporteerd

Glue Dispensing Systems UV Dispensing Robot . Hot Melt Vision Glue Robot

UV Dispensing Robot Systems

Advanced automated glue dispensing systems for precision application of various adhesives including silicone, UV glue, AB glue, and more.

Compatible Adhesives

Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.

Application Capabilities

Precision dotting, line drawing, and creation of squares, circles, and irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.

Technical Specifications

Power	220/110 V
Voltage	250W
Working Area (XYZ)	30030060 mm (Customizable)
Speed	Max. 500mm/sec
Dispensing Quantity	Min. 0.001ml
Resolution	0.01mm
Repeatability	+/-0.01mm
Size (LWH)	460450480 mm
Weight	70KG

Key Features

Full automatic robot with 3 or 4 axes
Dispensing path programmable in robot or imported from external computer
Easy operation with amendable holder and programs
Multiple independent running program storage
High precision glue control
Multiple dispensing head configuration capability
Wide dispensing area for multiple product setup
Customizable working table available
High quality construction with CE certification

Industry Applications

Electro-acoustic industry: speakers, buzzers, audio, headphones
Inductance industries: small transformers, SMD transformers, relays, small coil motors
Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
Computers, digital products, digital cameras, MP3, MP4, electronic toys
Switches, connectors, wire, plug cable assemblies
Electronics: electronic components, integrated circuits, circuit board solder paste, LCD liquid crystal screens
Optics: optical lenses, optical heads
Mechanical hardware, battery boxes, trademarks, steam machinery spare parts
LED manufacturing and assembly
