Name: Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-S330
Price: 5 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YS-S330

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $5,000 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Nordson glue injection machine for PCB, Datron glue dispensing head, PCB depaneling glue injection machine


Gewicht:	70 kg	Werkgebied:	30030060 mm
Werkvochtigheid:	20~90% geen condensatie	Afmetingen:	485505610 mm
Spanning:	250W	Viscositeit van de lijmpomp:	al bijna viscositeit
Uitdelend hoofd:	één of meer op verzoek	Stroom:	220/110 V
Maximale snelheid:	500 mm/sec	Doseerhoeveelheid:	Min. 0,001 ml
Oplossing:	0,01 mm	Herhaalbaarheid:	+/-0,01 mm
Machinegrootte:	460450480 mm	Model:	YS-S330
Kerncomponenten:	Motor

Gewicht:	70 kg
Werkgebied:	30030060 mm
Werkvochtigheid:	20~90% geen condensatie
Afmetingen:	485505610 mm
Spanning:	250W
Viscositeit van de lijmpomp:	al bijna viscositeit
Uitdelend hoofd:	één of meer op verzoek
Stroom:	220/110 V
Maximale snelheid:	500 mm/sec
Doseerhoeveelheid:	Min. 0,001 ml
Oplossing:	0,01 mm
Herhaalbaarheid:	+/-0,01 mm
Machinegrootte:	460450480 mm
Model:	YS-S330
Kerncomponenten:	Motor

Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue

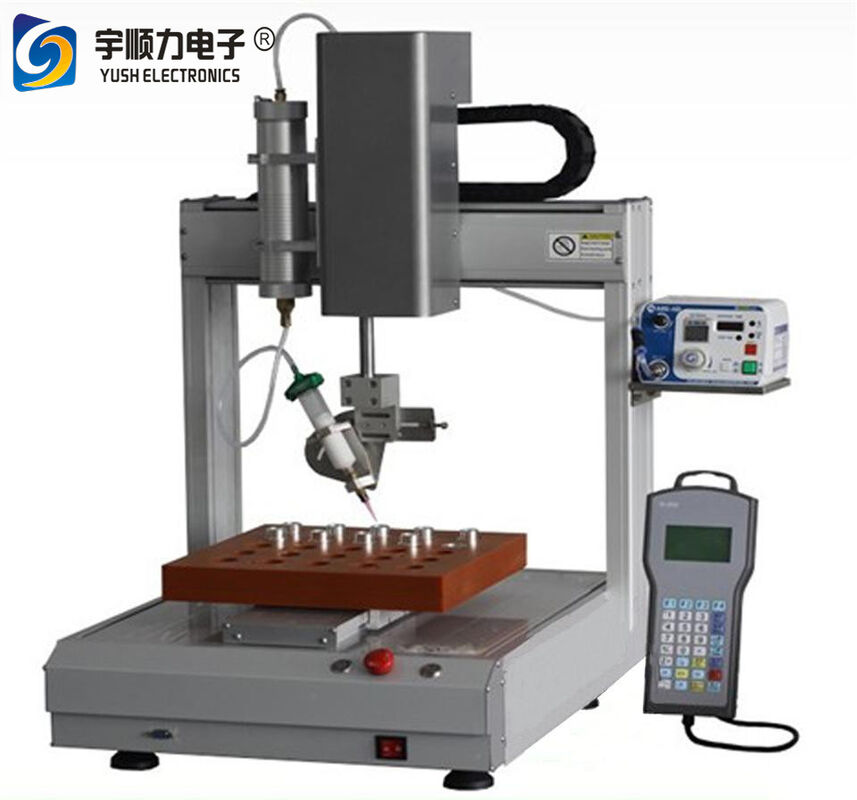

Glue Injection Machine – Nordson & Datron Models

Automatic epoxy dispenser robot for precision adhesive application

Key Specifications

Compatible with silicone glue, UV glue, AB glue, and various adhesives
Easy-to-modify holder and programmable settings
High-quality construction with CE certification

Compatible Adhesive Types

Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.

Application Methods

Capable of dotting, drawing lines, squares, circles, and various irregular patterns on product surfaces, exterior walls, vertical planes, and gaps.

Technical Specifications – Model YS-S330

Parameter	Specification
Power	220/110 V
Voltage	250W
Working Area (XYZ)	30030060 mm (Customizable)
Speed	Max. 500mm/sec
Dispensing Quantity	Min. 0.001ml
Resolution	0.01mm
Repeatability	+/- 0.01mm
Size (LWH)	460450480 mm
Weight	70KG

Key Features

Fully automatic robot with 3 or 4 axes operation
Dispensing paths programmable directly or imported from external computer
User-friendly operation with easy holder and program modifications
Multiple independent program storage capability
High precision glue control for consistent application
Configurable with multiple dispensing heads
Expansive dispensing area accommodating multiple products
Customizable working table available upon request

Industry Applications

Electro-acoustic industry: speakers, buzzers, audio systems, headphones
Inductance industries: small transformers, SMD transformers, relays, coil motors
Communications: mobile phone keyboards, phone shells, radios, telephones, fax machines
Computers & digital products: digital cameras, MP3/MP4 players, electronic toys
Electrical components: switches, connectors, wires, plug cables
Electronics: components, integrated circuits, PCB solder paste, LCD screens
Optics: lenses, optical heads
Mechanical hardware: battery boxes, trademarks, machinery spare parts
LED manufacturing and assembly
