Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                double-track PCB depaneling machine, mechanical PCB plate collector, stable PCB depaneling plate collector


Gewicht:	210KG	Machinetype:	dubbele spoorlosser
Externe dimensie:	L1600B1500H1660mm	Geleiderspoormateriaal:	mat aluminium profiel
Motorvermogen:	90W	Motortype:	Taiwan's speciale haakse motor
Afmetingen tijdschrift:	B320L355H570mm	PCB -afmetingen:	L330*W250
Hoogte van het hefplatform:	10,20,30,40,50	PLC -controller:	Huichuan PLC
Configuratiescherm:	Aanraakscherm	Klemstructuur:	Pneumatisch
Transportlengte:	0,65 m	Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
Geleiderail ketting:	plastic ketting met duizend vogels

Gewicht:	210KG
Machinetype:	dubbele spoorlosser
Externe dimensie:	L1600B1500H1660mm
Geleiderspoormateriaal:	mat aluminium profiel
Motorvermogen:	90W
Motortype:	Taiwan's speciale haakse motor
Afmetingen tijdschrift:	B320L355H570mm
PCB -afmetingen:	L330*W250
Hoogte van het hefplatform:	10,20,30,40,50
PLC -controller:	Huichuan PLC
Configuratiescherm:	Aanraakscherm
Klemstructuur:	Pneumatisch
Transportlengte:	0,65 m
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
Geleiderail ketting:	plastic ketting met duizend vogels

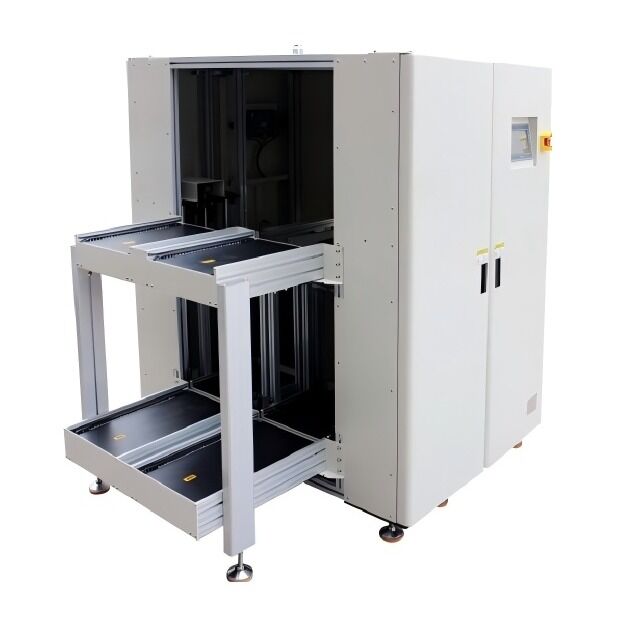

Strong and Stable Mechanical Design Double-track Plate Collector

This industrial-grade double-track plate collector features a robust mechanical design engineered for precision and reliability in PCB handling applications.

Technical Specifications

External Dimensions: L1600 × W1500 × H1660 mm

Magazine Specification: W320 × L355 × H570 mm

PCB Specification: L330 × W250 mm

Lift Platform Pitch Selection: 10, 20, 30, 40, 50 mm

Key Features

Special national standard frosted aluminum profile guide rail with thousand-bird plastic chain
90W Taiwan-made right-angle motor drives ball screw for magazine step up/down movement
Yadeke pneumatic clamp structure for secure holding
Includes 0.65M long transplantable push plate conveyor system
Huichuan PLC programmable controller for precise operation
Taiwan-made joint-venture display and control touch screen interface

Product Visualization
