                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT production line unloader, PCB depaneling stacking machine, smart stacking unloader machine


Gewicht:	200 kg	Luchtdruk:	0,4-0,6 MPa
Voeding:	eenfase 220V50HZ	Afmetingen:	113015001660mm
Afmetingen tijdschrift:	320355570mm	PCB -afmetingen:	L330*W250
Liftpitch:	10.20.30.40.50	Motorvermogen:	90W
controlesysteem:	PLC-programmeerbare controller	Voedertijd:	<5 Seconds="">
Geleiderspoormateriaal:	Mat aluminium profiel	Kettingtype:	Kunststof ketting met duizend vogels
Motortype:	Haakse motor	Driv -mechanisme:	Kogelschroef
Configuratiescherm:	LED-TFT-touchscreen

Gewicht:	200 kg
Luchtdruk:	0,4-0,6 MPa
Voeding:	eenfase 220V50HZ
Afmetingen:	113015001660mm
Afmetingen tijdschrift:	320355570mm
PCB -afmetingen:	L330*W250
Liftpitch:	10.20.30.40.50
Motorvermogen:	90W
controlesysteem:	PLC-programmeerbare controller
Voedertijd:	<5 Seconds="">
Geleiderspoormateriaal:	Mat aluminium profiel
Kettingtype:	Kunststof ketting met duizend vogels
Motortype:	Haakse motor
Driv -mechanisme:	Kogelschroef
Configuratiescherm:	LED-TFT-touchscreen

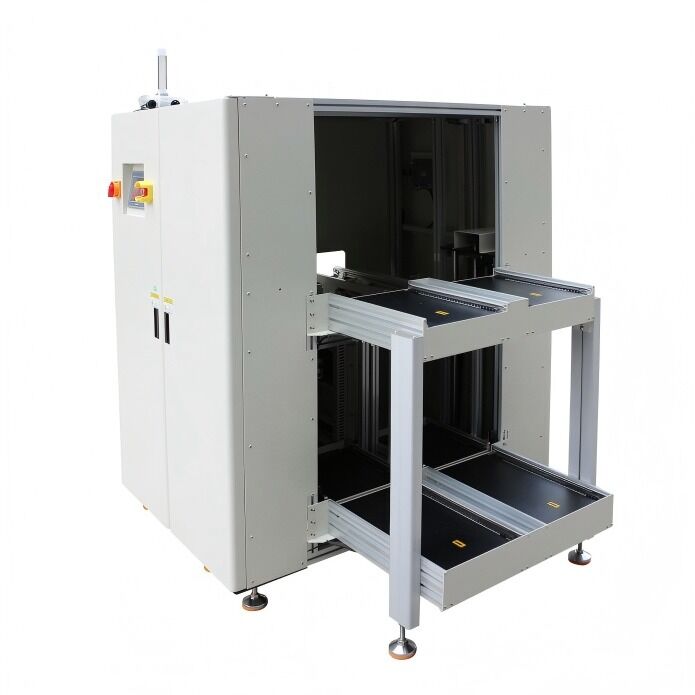

Smart Stacking Unloader Is Suitable for SMT Production Lines.

Smart Stacking Unloader for SMT Production Lines

Product Overview

This automated stacking unloader is specifically designed for SMT production lines, providing efficient PCB handling with precise control and reliable operation.

Key Features

Robust and stable mechanical design for continuous operation
PLC control system with programmable sheet feeding timing
Rapid operation with cycle times under 5 seconds
LED TFT touch screen control panel for intuitive operation
Pass-through function for continuous PCB board transfer

Technical Specifications

Parameter	Specification
External Dimensions	1130 × 1500 × 1660 mm
Guide Rail System	National standard frosted aluminum profile with thousand-bird plastic chain
Drive System	90W Taiwan special right-angle motor driving ball screw for magazine vertical movement
Magazine Specification	320mm (W) × 355mm (L) × 570mm (H)
PCB Specification	330mm (L) × 250mm (W)
Lift Platform Pitch Selection	10, 20, 30, 40, 50 mm increments
Control System	Huichuan PLC programmable controller
Power Supply	Single-phase 220V 50HZ
Air Source Requirement	0.4 - 0.6 MPa
Electrical Cabinet	Included (1 set)
