Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT label mounter for PCB assembly, PCB depaneling machine with label mounting, online label mounter for SMT lines


Gewicht:	1250 kg	Stroom:	10 kW
Spanning:	220V/110V	PCB-formaat:	L50B80mm ~L450B350mm; Dikte 0,5 mm-6 mm
Bedrijfsmodus:	X,Y,Z,R beweging (servomotor)	Dimensie:	L1000B1200H1500 mm
Positiesysteem:	5M CCD	Hoogte bovenoppervlak:	<25mm>
Snelheid:	3500pcs/h	Grootte van het etiket:	33 ~ 5050mm
etiketteringsprecisie:	±0,05 mm	Etiketteringshoek:	360°
Feeder-invoer:	2 \| 1	Voeding:	AC220V/50Hz, 1kva
Interne printer:	Merk Zebra

Gewicht:	1250 kg
Stroom:	10 kW
Spanning:	220V/110V
PCB-formaat:	L50B80mm ~L450B350mm; Dikte 0,5 mm-6 mm
Bedrijfsmodus:	X,Y,Z,R beweging (servomotor)
Dimensie:	L1000B1200H1500 mm
Positiesysteem:	5M CCD
Hoogte bovenoppervlak:	<25mm>
Snelheid:	3500pcs/h
Grootte van het etiket:	33 ~ 5050mm
etiketteringsprecisie:	±0,05 mm
Etiketteringshoek:	360°
Feeder-invoer:	2 \| 1
Voeding:	AC220V/50Hz, 1kva
Interne printer:	Merk Zebra

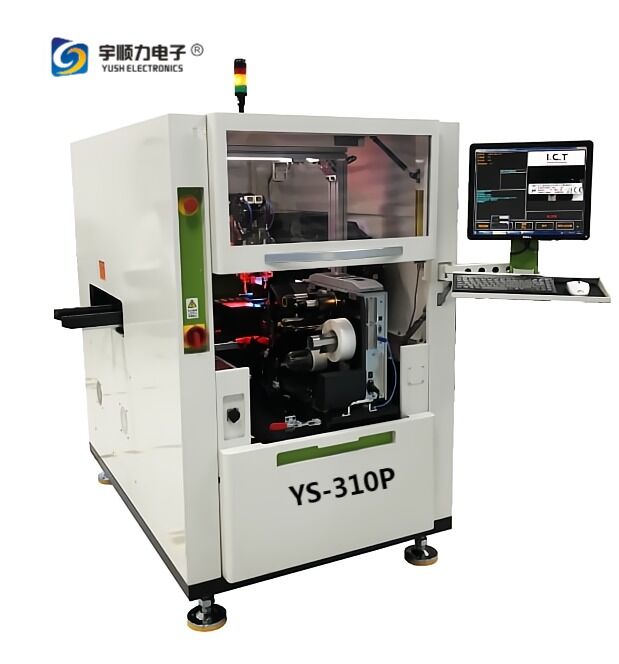

SMT Online Label Mounter in PCB Assembly Line

4 Heads Multi-Function SMT Automatic Labeling Machine

This advanced unit is designed for mounting various barcodes labels (1D, 2D, labels with different background paper colors) and film products (translucent, opaque, different colors, different thicknesses) in PCB assembly lines.

Key Features

R&D, design and manufacturing in Taiwan
In-line/Off-Line operation modes
X, Z, R axis with servo modules for high precision and speed
Adsorbing and mounting of printed roll-up labels
Print-and-paste functionality with optional printer
Barcode reading and validation with optional reader
Z-axis adaptation for PCBA at different heights
Standard 2 groups of mounting heads for simultaneous label adsorption
Independent vacuum detection for each mounting head
Online database system for barcode information management
360° servo rotation for precise mounting control
600dpi latest Zebra industrial grade printer
5 million industrial cameras with three-color light source
MES system interconnection for production statistics

Technical Specifications

Item	YS-310	YS-310P
Internal Printer	N/A	Zebra Brand
Speed	3500Pcs/H
Label Size	33 ~ 5050mm
Labeling Precision	±0.05mm
Labeling Angle	360°
Feeder Input	2	1
PCB Size	L50W80mm ~L450 W350mm; Thickness 0.5mm-6mm
Top Surface Height of PCB	<25mm
Position System	5M CCD
Operation Mode	X,Y,Z,R movement (Servo Motor)
Power	AC220V/50Hz, Total power: 1kva
Body Size	L1000 W1200 H1500 mm
Machine weight	1250Kg
