Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high speed vacuum loader for LED, efficient PCB depaneling machine, LED light vacuum loader


Gewicht:	420 Kg	Spanning:	220V
Stroombron:	Wisselstroom 220V, 50/60Hz, 1 fase	Maximale PCB-capaciteit:	250 mm
PCB-toevoertijd:	10 seconden	Transporthoogte:	950 ± 30 mm
Spuitmonden:	3 of 8	Stroomverbruik:	300 Max
Luchtdruk:	Houten kisten exporteren	Luchtverbruik:	30 l/min Max
Effectieve PCB-grootte:	80x80 - 1200X300mm	Machineafmetingen:	1500X1028X1519 mm
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor	SMEMA-compatibiliteit:	Ja
Snelheidscontrole:	Ja

Gewicht:	420 Kg
Spanning:	220V
Stroombron:	Wisselstroom 220V, 50/60Hz, 1 fase
Maximale PCB-capaciteit:	250 mm
PCB-toevoertijd:	10 seconden
Transporthoogte:	950 ± 30 mm
Spuitmonden:	3 of 8
Stroomverbruik:	300 Max
Luchtdruk:	Houten kisten exporteren
Luchtverbruik:	30 l/min Max
Effectieve PCB-grootte:	80x80 - 1200X300mm
Machineafmetingen:	1500X1028X1519 mm
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
SMEMA-compatibiliteit:	Ja
Snelheidscontrole:	Ja

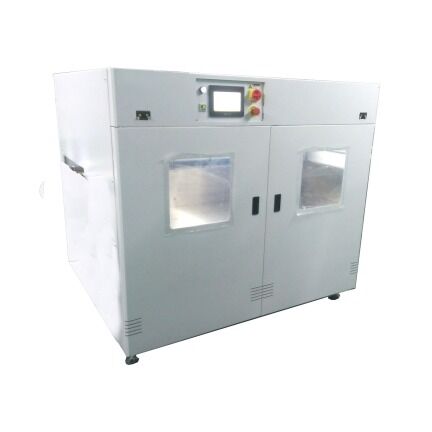

High Speed and High Efficiency Vacuum Loader for LED Lights

Key Features

User-friendly touch screen control for easy operation
Enclosed design ensures high level of safety
Adjustable vacuum stubs positions with magnetic mounting
3 or 8 nozzles type available to match PCB surface requirements
Conveyor height: 950±30mm
SMEMA compatible for seamless integration

Available Options

Automatic width adjustment
Mechanical stopper
Different belt width and chain system configurations
Safety interlocker
Speed control

Technical Specifications

Power Consumption	300W Max
Air Pressure & Consumption	4-6 bar, 30 l/min Max.
Weight	420 Kg
Effective PCB Size (LxW)	80x80 - 1200x300 mm
Machine Dimensions	1500x1028x1519 mm
