                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Micro PCB drilling machine with 0.005mm precision, PCB depaneling machine with positional accuracy, Precision PCB drilling machine for micro holes


Gewicht:	4500 kg	Stroom:	5 kW
Spanning:	Als de vraag van de klant	Maat:	2100 mm × 2020 mm × 1820 mm
Bedradingsgrootte:	550 mm × 670 mm	Persluchtdruk:	6,5 bar-7 bar
Luchtluf:	200 l/min	Vast werkstuk:	3.175mm
Positionele precisie:	0,005 mm	Herhaal positionele precisie:	0.002 mm
Gaten per keer:	2	Max Spindle Speed:	160 k/min
Minimale boordiameter:	0.10mm	maximum boordiameter:	6,35 mm
Gereedschapswisselaarnummer:	250 stuks

Gewicht:	4500 kg
Stroom:	5 kW
Spanning:	Als de vraag van de klant
Maat:	2100 mm × 2020 mm × 1820 mm
Bedradingsgrootte:	550 mm × 670 mm
Persluchtdruk:	6,5 bar-7 bar
Luchtluf:	200 l/min
Vast werkstuk:	3.175mm
Positionele precisie:	0,005 mm
Herhaal positionele precisie:	0.002 mm
Gaten per keer:	2
Max Spindle Speed:	160 k/min
Minimale boordiameter:	0.10mm
maximum boordiameter:	6,35 mm
Gereedschapswisselaarnummer:	250 stuks

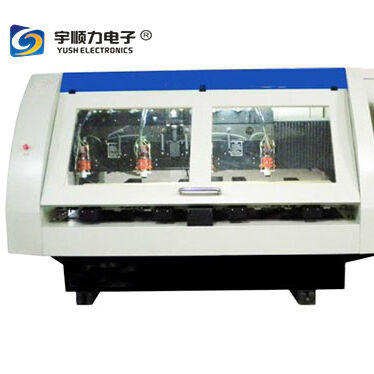

Micro Pcb Drilling Machine With Positional Precision 0.005mm

Micro PCB Drilling Machine with 0.005mm Positional Precision

This high-precision PCB drilling machine is designed for creating printed circuit boards, featuring 2-axis operation for drilling holes on both single and double-layer PCBs with exceptional accuracy.

Technical Specifications

Wiring Size	550mm × 670mm
X, Y, Z Axis Positioning Table	560mm × 840mm × 60mm
X, Y Axis Positioning Feed	40m/min
Z Axis Locomotion Feed	30m/min
X, Y Axis Acceleration	1.2g
Z Axis Acceleration	3G
Fixed Workpiece	3.175mm
Positional Precision	0.005mm
Repeat Positional Precision	0.002mm
Holes Per Time	2
Max Speed of Spindle (Optional)	160,000 rpm
Break Tool Check	Contact Drilling
Minimum Drill Diameter	0.10mm
Maximum Drill Diameter	6.35mm
Tool Changer Capacity	250 PCS
Laser Tool Check	Can check diameter and length of tools
CNC Type	Sieb & Meyer CNC 84.00
Power Supply	380V 50/60Hz
Total Power	5 KW
Compressed Air Pressure	6.5bar - 7bar
Air Flux	200 L/min
Machine Size	2100mm × 2020mm × 1820mm
Gross Weight	4500kg
