Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB cleaning machine high efficiency, PCB depaneling machine with warranty, high efficiency PCB cleaning equipment


Gewicht:	200 kg	Spanning:	220V
Cyclustijd:	8 seconden	PCB-dikte:	0.6-4 mm
Transportsnelheid:	0.5-20m/min	Stroombron:	Wisselstroom 220V, 50/60Hz, 1 fase
Transporthoogte:	950 ± 30 mm	Machineafmetingen:	650x976x1380
Effectieve PCB-grootte:	80x80 - 530x460	Stroomverbruik:	150W MAXIMUM
Luchtdruk:	Houten kisten exporteren	Luchtverbruik:	10 l/min Max
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor	Bewakingsgegevens opslaan:	30 dagen
SMEMA-compatibiliteit:	Ja

Gewicht:	200 kg
Spanning:	220V
Cyclustijd:	8 seconden
PCB-dikte:	0.6-4 mm
Transportsnelheid:	0.5-20m/min
Stroombron:	Wisselstroom 220V, 50/60Hz, 1 fase
Transporthoogte:	950 ± 30 mm
Machineafmetingen:	650x976x1380
Effectieve PCB-grootte:	80x80 - 530x460
Stroomverbruik:	150W MAXIMUM
Luchtdruk:	Houten kisten exporteren
Luchtverbruik:	10 l/min Max
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
Bewakingsgegevens opslaan:	30 dagen
SMEMA-compatibiliteit:	Ja

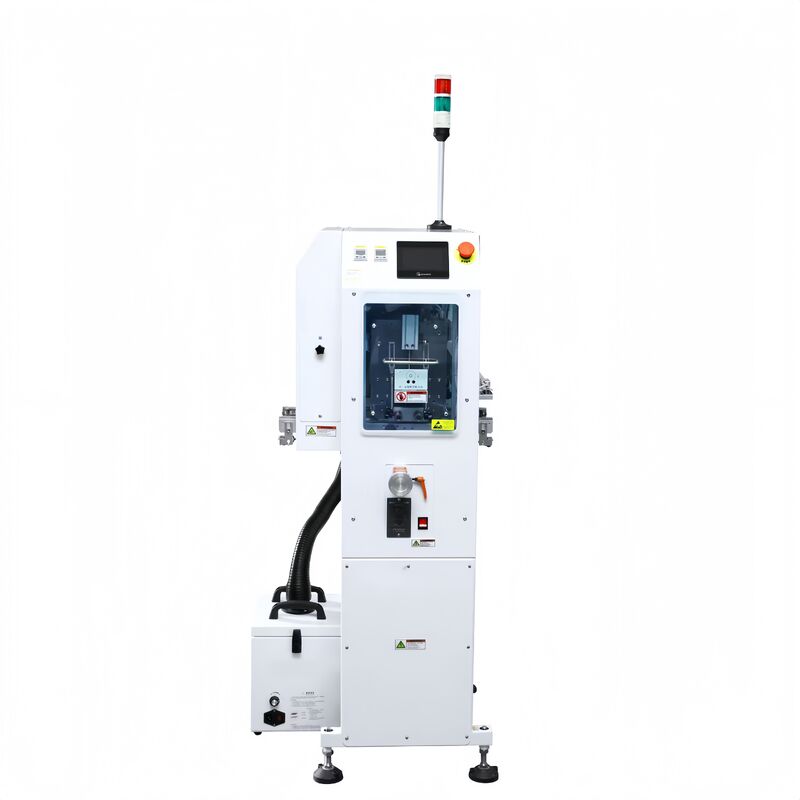

High Quality and High Efficiency PCB Cleaning Machine

Key Features

Real-Time Electrostatic Monitoring System with 30-day data storage
User-friendly touch screen control panel
Keyence Ionizer for static electricity removal
Pull-out design for easy maintenance
Conveyor height: 950±30mm
SMEMA compatible
Available in single side or double side configurations

Available Options

External brush with vacuum for dust absorption
Additional ionizers for enhanced static elimination
Automatic width adjustment
Safety interlock system

Technical Specifications

Specification	Value
Safety Interlocker	YSM-055HD3TXL-BR-IO
Machine Dimensions	650x976x1380 mm
Effective PCB Size (LxW)	80x80 - 530x460 mm
Power Consumption	150W Max
Air Pressure & Consumption	4-6 bar, 10 l/min Max
