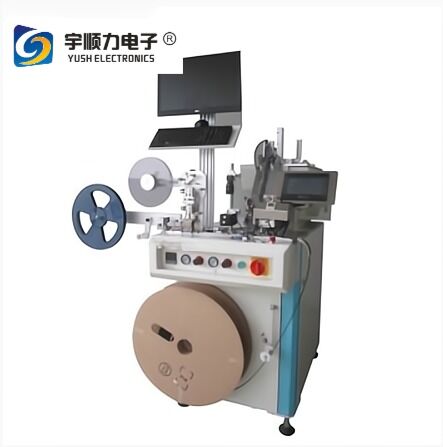

YS-12T-Automatic Tape and Reel Packaging Equipment

Productdetails

Plaats van herkomst: Guangdong, China

Merknaam: YUSH

Certificering: CE

Modelnummer: YS-12T

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $6,000 / set

Vind de beste prijs
Markeren:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Gewicht:
160 kg
Spanning:
220VAC
Stroombron:
AC200V/50Hz
Werkluchtdruk:
0,40 ~ 0,6 MPa
Capaciteit:
3K-15K UPH
controlesysteem:
Programmeerbare logische controller+touchscreen+servomotor
Temperatuurregeling:
PID Temperatuurcontrole
Voeden en ontvangen:
Rubberen schijven en papieren schijven conform de EIA-481-norm
Bandbreedte:
12,16 mm
Verzegelende Vorm:
Warme en koude afdichtingen
Ingangsspanning:
AC220V/50Hz
Maximale stroom:
10A
Machinegrootte:
2030*528*583(L*B*H)
Netto gewicht:
160 kg
Selectieve configuratie:
Beelddetectiesysteem
Gewicht:
160 kg
Spanning:
220VAC
Stroombron:
AC200V/50Hz
Werkluchtdruk:
0,40 ~ 0,6 MPa
Capaciteit:
3K-15K UPH
controlesysteem:
Programmeerbare logische controller+touchscreen+servomotor
Temperatuurregeling:
PID Temperatuurcontrole
Voeden en ontvangen:
Rubberen schijven en papieren schijven conform de EIA-481-norm
Bandbreedte:
12,16 mm
Verzegelende Vorm:
Warme en koude afdichtingen
Ingangsspanning:
AC220V/50Hz
Maximale stroom:
10A
Machinegrootte:
2030*528*583(L*B*H)
Netto gewicht:
160 kg
Selectieve configuratie:
Beelddetectiesysteem
YS-12T-Automatic Tape and Reel Packaging Equipment
YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
