Thuis > producten > de depaneling machine van PCB > UV Curing Oven Drying Oven

UV Curing Oven Drying Oven

Productdetails

Plaats van herkomst: Guangdong, China

Merknaam: YUSH

Modelnummer: YS-U1

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $10,000 / set

Vind de beste prijs
Markeren:

UV curing oven for PCB

,

drying oven with UV curing

,

PCB depaneling UV oven

Gewicht:
350KG
controlesysteem:
instrument
Transportsnelheid:
100~3000 mm/min
Hoeveelheid UV-licht:
1SET
UV-lichtvermogen:
2 kW/set
Levensduur UV-lamp:
1000-1200 uur
Transportmateriaal:
Teflon -gaasgordel
Effectieve breedte:
50450mm
Koelgebied:
Onafhankelijk
Motortype:
Geïmporteerd
Snelheidsaanpassing:
0-2000mm/min
Typ van reflector:
Hoge lichtreflector
Kettingmateriaal:
Roestvrij staal
Lampcontrole:
Afzonderlijke Controle
Hoogte lamp:
Verstelbaar
Gewicht:
350KG
controlesysteem:
instrument
Transportsnelheid:
100~3000 mm/min
Hoeveelheid UV-licht:
1SET
UV-lichtvermogen:
2 kW/set
Levensduur UV-lamp:
1000-1200 uur
Transportmateriaal:
Teflon -gaasgordel
Effectieve breedte:
50450mm
Koelgebied:
Onafhankelijk
Motortype:
Geïmporteerd
Snelheidsaanpassing:
0-2000mm/min
Typ van reflector:
Hoge lichtreflector
Kettingmateriaal:
Roestvrij staal
Lampcontrole:
Afzonderlijke Controle
Hoogte lamp:
Verstelbaar
UV Curing Oven Drying Oven
UV Curing Oven Drying Oven

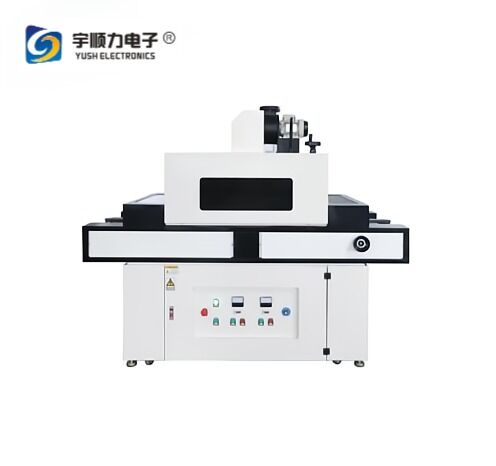

Product Overview
YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.
Key Features
  • Advanced control system with instrument or PLC+touch screen for stable operation
  • UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
  • Abnormal lamp protection device for enhanced safety
  • Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
  • Focus design with imported high-light reflector lamp shade for instant drying
  • Independent cooling area ensures low output temperature for PCBs
  • Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
  • Stainless steel chain transportation with adjustable effective width (50-450mm)
  • In/out board detection function for monitoring board count and transportation
  • Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
  • Individual UV lamp group control with adjustable height settings
UV Curing Oven Drying Oven 0
Technical Specifications
Specifications YS-U1 YS-U2 YS-U3
Transport Teflon mesh belt Stainless steel chain Stainless steel chain
Control System Instrument PLC+touch screen PLC+touch screen
Conveyor Speed 100~3000mm/min 100~3000mm/min 100~3000mm/min
UV Light Quantity 1 set 2 sets 1 set (2 sets optional)
UV Light Power 2Kw/set 3Kw/set 6Kw/set
Weight Approx. 350KG Approx. 420KG Approx. 420KG
