Name: High Quality and High Efficiency Tickle Switch Insert Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-W50
Price: 30 USD
Availability: InStock

Productdetails

Plaats van herkomst: Guangdong, China

Merknaam: YUSH

Modelnummer: YS-W50

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $30,000 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency tickle switch machine, PCB depaneling machine with warranty, tickle switch insert depaneling machine


Gewicht:	China	Model:	YS-W50
Drukvereisten:	0,6 MPa	Invoegingsrichting:	0 °- 360 °, increment
Invoegingspercentage:	3,3 eenheden per seconde	Theoretische snelheid:	Ongeveer 12.000 CPH
Hoofd:	1-2 gereedschappen	Component-kabelspanwijdte:	B4,5 mm, L6,5 mm
Bordgrootte:	Min 50 mm * 50 mm, maximaal 350 mm * 300 mm	Breedte:	50~300mm (Regelbaar)
Clinch-hoek:	45 ° interne buiging	Stroomvereiste:	AC220V, 50/60Hz, eenfasig 1,0 kW
PCB-dikte-tolerantie:	Compensatie-algoritme	Visiesysteem:	Hoge precisie
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor

Gewicht:	China
Model:	YS-W50
Drukvereisten:	0,6 MPa
Invoegingsrichting:	0 °- 360 °, increment
Invoegingspercentage:	3,3 eenheden per seconde
Theoretische snelheid:	Ongeveer 12.000 CPH
Hoofd:	1-2 gereedschappen
Component-kabelspanwijdte:	B4,5 mm, L6,5 mm
Bordgrootte:	Min 50 mm * 50 mm, maximaal 350 mm * 300 mm
Breedte:	50~300mm (Regelbaar)
Clinch-hoek:	45 ° interne buiging
Stroomvereiste:	AC220V, 50/60Hz, eenfasig 1,0 kW
PCB-dikte-tolerantie:	Compensatie-algoritme
Visiesysteem:	Hoge precisie
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor

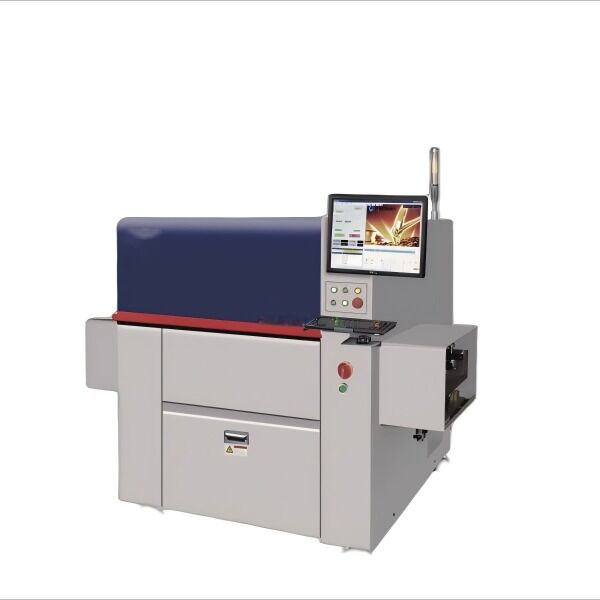

High Quality and High Efficiency Tickle Switch Insert Machine

Product Features

XY servo motor driven for high automation, ready for production within 10 minutes
0°-360° freely programmable insertion angle with 1° increments
Insertion rate up to 3.3 units per second (1 unit per stroke)
Synchronous lower cutter clamping during insertion to prevent floating
Supports standard package feeding and bulk vibrator bowl feeding
Flexible PCB transmission directions (left-right, right-left, in/out same side as SSIO)
Lower support tool with pin inspection function for quality monitoring
Real-time strength monitoring ensures 100% high-quality insertion
High precision vision system for PCB deviation correction
Intuitive software operation interface with easy programming
PCB thickness tolerance compensation algorithm
Modular options for Industry 4.0 connectivity and full traceability

Technical Specifications

Item	YS-W50
Theoretical Speed	Approx 12,000 CPH
Head	1-2 tools
Component Lead Span	W4.5mm, L6.5mm
Board Size	Min 50mm×50mm, Max 350mm×300mm
Track Width	50-300mm (Adjustable)
Clinch Angle	45° Internal Bending
Weight	Main Body, Approx 750kg
Power Requirement	AC220V, 50/60Hz, Single Phase 1.0Kw
