Gewicht:	2100 kg	Toepasselijke PCB:	L700xB460mm tot L50xB50mm
Snelheid:	200.000 CPH (bij gebruik van RS-kop)	Toepasselijke onderdelen:	0201* tot 6,5 mm (hoogte 2,0 mm of minder)
Montage nauwkeurigheid:	+/-35μm (25μm) Cpk ≥1,0 (3)	Aantal voeders:	Max. 80 feeders met RS-koppen
Voeding:	3 fasen AC 200/208/220/240/380/400/416V +/-10%	Luchttoevoer:	0.45 MPa of meer, in een zuivere, droge toestand
Externe dimensie:	L1,000 × W2,100 × H1,550 mm	Snelheid (MU-kop):	58.000CPH (bij gebruik van MU-kop)
Toepasselijke componenten (MU):	0402 tot 45×100 mm (hoogte 15 mm of minder)	Montagenauwkeurigheid (MU):	+/-40μm (30μm) Cpk ≥1,0 (3σ)
Aantal feeders (MU):	92 feeders met MU- of FL-koppen	Max. feeders (RS+MU):	Max. 84 feeders met RS x 2 + MU x 2 koppen
Componenthoogte (MU):	Hoogte 25,5 mm of minder

Gewicht:	2100 kg
Toepasselijke PCB:	L700xB460mm tot L50xB50mm
Snelheid:	200.000 CPH (bij gebruik van RS-kop)
Toepasselijke onderdelen:	0201* tot 6,5 mm (hoogte 2,0 mm of minder)
Montage nauwkeurigheid:	+/-35μm (25μm) Cpk ≥1,0 (3)
Aantal voeders:	Max. 80 feeders met RS-koppen
Voeding:	3 fasen AC 200/208/220/240/380/400/416V +/-10%
Luchttoevoer:	0.45 MPa of meer, in een zuivere, droge toestand
Externe dimensie:	L1,000 × W2,100 × H1,550 mm
Snelheid (MU-kop):	58.000CPH (bij gebruik van MU-kop)
Toepasselijke componenten (MU):	0402 tot 45×100 mm (hoogte 15 mm of minder)
Montagenauwkeurigheid (MU):	+/-40μm (30μm) Cpk ≥1,0 (3σ)
Aantal feeders (MU):	92 feeders met MU- of FL-koppen
Max. feeders (RS+MU):	Max. 84 feeders met RS x 2 + MU x 2 koppen
Componenthoogte (MU):	Hoogte 25,5 mm of minder

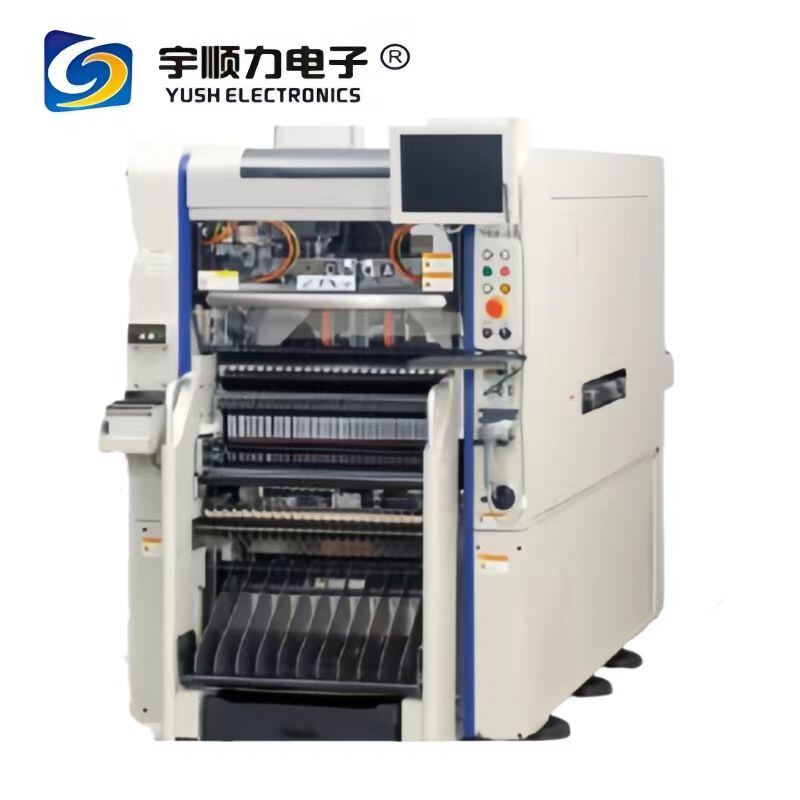

Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter

The Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter delivers exceptional performance with revolutionary productivity and precision mounting capabilities for advanced electronics manufacturing.

Key Features

Revolutionary productivity of 200,000 CPH - world's fastest speed on a compact platform
Highest productivity in the world for SMT mounting applications
Flexible response for different production configurations and requirements
Advanced technology supporting high mounting quality and superior machine operating rate

Technical Specifications

Model	4-Beam, 4-Head Spec. (YS-40R4)	2-Beam, 2-Head Spec. (YS-40R2)
Applicable PCB	L700×W460mm to L50×W50mm
Speed	200,000 CPH (When using RS head)	58,000 CPH (When using MU head)
Applicable components	0201* to 6.5mm (Height 2.0mm or less) *option 03015 to 45×60m (Height 15mm or less)	0402 to 45×100mm (Height 15mm or less) 0603 to 45×100mm (Height 25.5mm or less)
Mounting accuracy	+/-35μm (25μm) Cpk ≥1.0 (3σ)	+/-40μm (30μm) Cpk ≥1.0 (3σ)
Number of component types	Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads * 8mm width tape conversion	92 feeders with MU or FL heads
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source	0.45MPa or more, in clean, dry state
External dimension	L1,000×W2,100×H1,550mm
Weight	Approx. 2,100 kg
