Name: YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-SM481 Plus
Price: 408.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YS-SM481 Plus

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $16,800 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT chip mounter machine, professional SMT mounter, PCB depaneling machine with warranty


Gewicht:	1300 kg	Assen:	10 Spindels x2 Gantry
Plaatsingssnelheid:	78.000 CPH (optimaal)	Nauwkeurigheid van plaatsing:	±40μm@μ±3
Toepasselijke delen:	0402 ~ 14 mm (H 12 mm)	Dimensie:	1650x1690x1458 mm
Kerncomponenten:	Motor, pomp	Model:	YS-SM481 Plus
Toepasselijke PCB:	Max. 460(L) x 400(B)(standaard), Max. 1500(L) x 460(B)(Optie)	Plaatsingssnelheid optimaal:	40.000 CPH
Toepasselijk onderdelenassortiment:	0402 ~ 42 mm (H 15 mm)	Dimensiemodel:	1650×1680×1530 mm
Maximale PCB-optie:	Max. 1500(L) x 460(B)	Standaard printplaat:	Max. 460(L) x 400(B)
Hoogtebereik:	H 15 mm

Gewicht:	1300 kg
Assen:	10 Spindels x2 Gantry
Plaatsingssnelheid:	78.000 CPH (optimaal)
Nauwkeurigheid van plaatsing:	±40μm@μ±3
Toepasselijke delen:	0402 ~ 14 mm (H 12 mm)
Dimensie:	1650x1690x1458 mm
Kerncomponenten:	Motor, pomp
Model:	YS-SM481 Plus
Toepasselijke PCB:	Max. 460(L) x 400(B)(standaard), Max. 1500(L) x 460(B)(Optie)
Plaatsingssnelheid optimaal:	40.000 CPH
Toepasselijk onderdelenassortiment:	0402 ~ 42 mm (H 15 mm)
Dimensiemodel:	1650×1680×1530 mm
Maximale PCB-optie:	Max. 1500(L) x 460(B)
Standaard printplaat:	Max. 460(L) x 400(B)
Hoogtebereik:	H 15 mm

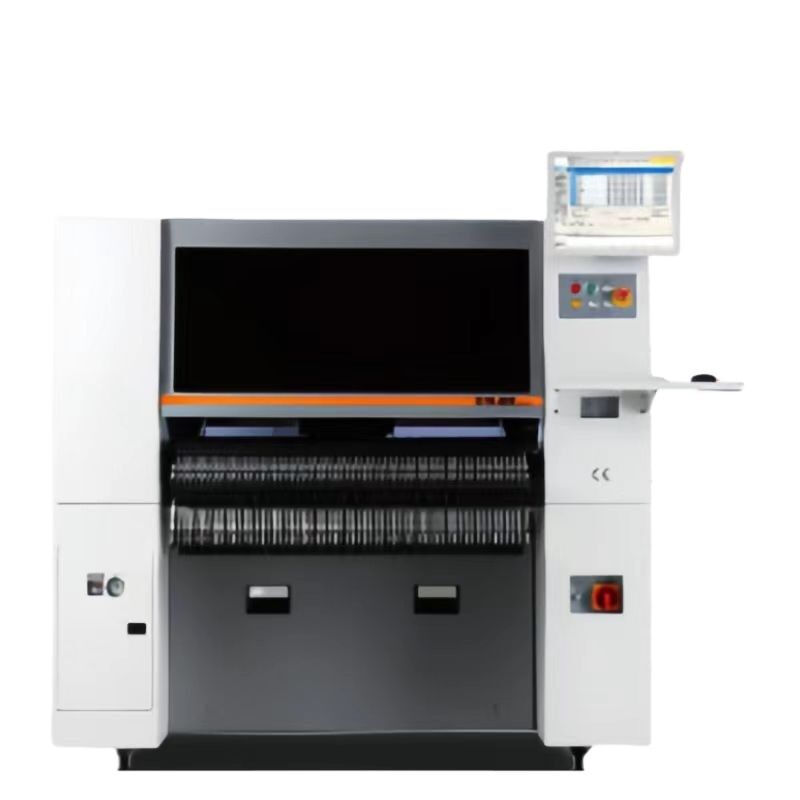

YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine

The YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine delivers exceptional performance and reliability for surface mount technology applications. Engineered with precision and built for industrial durability.

Technical Specifications

Model	YS-SM471 Plus	YS-SM481 Plus	YS-SM482 Plus
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000 CPH (Optimum)	40,000 CPH (Optimum)	30,000 CPH (Optimum)
Placement Accuracy	±40μm @ μ±3σ	±40μm @ μ±3σ	±40μm @ μ±3σ
Applicable Parts	0402 ~ 14mm (H 12mm)	0402 ~ 42mm (H 15mm)	0402 ~ 55mm (H 15mm)
Applicable PCB	Max. 510(L) × 460(W) (Standard) Max. 610(L) × 460(W) (Option)	Max. 460(L) × 400(W) (Standard) Max. 1500(L) × 460(W) (Option)	Max. 460(L) × 400(W) (Standard) Max. 1200(L) × 510(W) (Option)
Dimension (mm)	1650 × 1690 × 1458	1650 × 1680 × 1530	1650 × 1680 × 1458

About YUSH Electronic Technology

YUSH Electronic Technology Co., Ltd was founded in 2005 and is strategically located in Jiangsu, China's world-renowned manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery.

YUSH Electronic Technology maintains advanced production and processing equipment supported by an experienced development and manufacturing team. Over half of our technical staff possess more than 10 years of experience in the electronic equipment industry.

Since 2004, our leadership has focused on developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, operational safety, and continuous innovation, resulting in numerous high-quality, stable-performance, and cost-effective products that improve production yields and enhance customer competitiveness.

Our comprehensive product line includes various PCB separation solutions featuring manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router technologies. Our commitment to quality and competitive pricing has established a global customer base, positioning YUSH as one of China's leading PCB separator production facilities.
