Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT solder paste stencil printer, semi-auto screen printer PCB, stencil printer for SMT


Gewicht:	300 kg	Stroom:	10 kW
Spanning:	220V, 110V	Modelnummer:	YS-L600
Afmetingen:	8507201650mm	Platformgrootte:	350×400mm
PCB-formaat:	320×400mm	Sjabloongrootte:	550×680mm
Afdruksnelheid:	0-8000mm/min	PCB-dikte:	0-2,0 mm
PCB-fijnafstemming:	Voor/zijkant ±10 mm	Platformhoogte:	850 ± 20 mm
Herhaalbaarheid nauwkeurigheid:	±0,02 mm	Positioneringsmodus:	Buiten/referentiegat
Voeding:	1Pac220V 50/60Hz

Gewicht:	300 kg
Stroom:	10 kW
Spanning:	220V, 110V
Modelnummer:	YS-L600
Afmetingen:	8507201650mm
Platformgrootte:	350×400mm
PCB-formaat:	320×400mm
Sjabloongrootte:	550×680mm
Afdruksnelheid:	0-8000mm/min
PCB-dikte:	0-2,0 mm
PCB-fijnafstemming:	Voor/zijkant ±10 mm
Platformhoogte:	850 ± 20 mm
Herhaalbaarheid nauwkeurigheid:	±0,02 mm
Positioneringsmodus:	Buiten/referentiegat
Voeding:	1Pac220V 50/60Hz

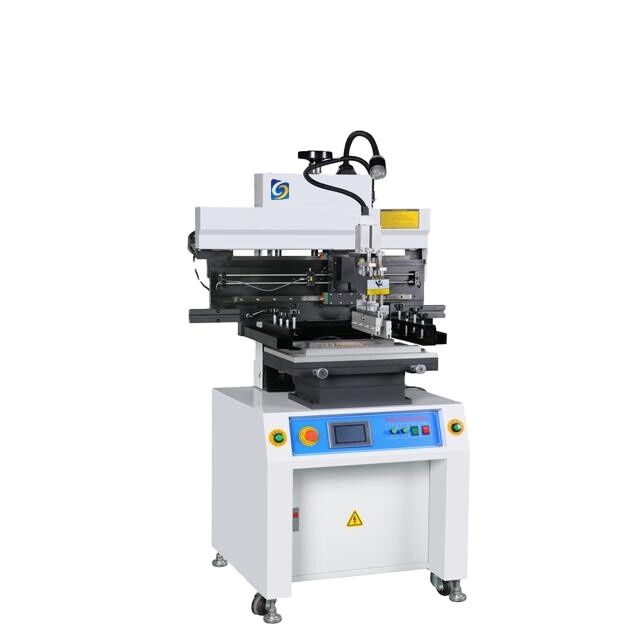

Semi-auto SMT solder paste printer /Screen printer / Stencil Printer

Semi-Automatic SMT Solder Paste Printer / Screen Printer / Stencil Printer

Key Features

Precision guide rail and imported motor drive for blade seat conversion with high accuracy
45-degree rotating printing scraper for easy stencil and squeegee cleaning and replacement
Adjustable blade positioning for optimal printing placement
Fixed groove printing platen with PIN system for easy single and double-sided printing
Movable steel mesh with X, Y, Z fine adjustment capabilities
Multiple printing methods including one-way and two-way operation
Automatic counting function for production output statistics
Adjustable blade angle compatible with both steel blades and rubber scrapers
Touch screen with adjustable screen saver function to extend display life
Adjustable printing speed with real-time display

Technical Specifications

Model	YS-L600
Dimensions	850×8720×1650mm
Platform Size	350×400mm
PCB Size	320×400mm
Template Size	550×680mm
Printing Speed	0-8000mm/min
PCB Thickness	0-2.0mm
PCB Fine Tuning Range	Front/side ±10mm
Power Supply	1PAC220V 50/60HZ
Platform Height	850±20mm
Repeatability Precision	±0.02mm
Positioning Mode	Outside/Reference Hole
Weight	Approx. 300Kg
