Name: YS-G9 Fully Automatic Solder Paste Printer White
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-G9
Price: 10.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YS-G9

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $10,000-10,900 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic solder paste printer, YS-G9 solder paste printer, PCB depaneling machine with warranty


Gewicht:	1000 kg	Maximale bordmaat:	450*340 mm
transportsnelheid:	900±40mm	Afdruksnelheid:	10~200 mm/sec
Stroombron:	AC:220 ± 10%,50/60Hz 2,2 kW	Machineafmeting:	1530 ((H) mm
lengte van de machine:	1172 ((L) mm	Machinebreedte:	1385 ((W) mm
Bedrijfstemperatuur:	-20 ℃ ~+45 ℃	Herhaalde positie nauwkeurigheid:	±10um@6 σ,CPK≥2,0
Afdruknauwkeurigheid:	±18um@6 σ,CPK≥2,0	plaatdikte:	0.4~6mm
maximaal gewicht van het plank:	3 kg	Luchtdruk:	4 tot en met 6 kgf/cm2
Luchtverbruik:	Ongeveer 5 l/min

Gewicht:	1000 kg
Maximale bordmaat:	450*340 mm
transportsnelheid:	900±40mm
Afdruksnelheid:	10~200 mm/sec
Stroombron:	AC:220 ± 10%,50/60Hz 2,2 kW
Machineafmeting:	1530 ((H) mm
lengte van de machine:	1172 ((L) mm
Machinebreedte:	1385 ((W) mm
Bedrijfstemperatuur:	-20 ℃ ~+45 ℃
Herhaalde positie nauwkeurigheid:	±10um@6 σ,CPK≥2,0
Afdruknauwkeurigheid:	±18um@6 σ,CPK≥2,0
plaatdikte:	0.4~6mm
maximaal gewicht van het plank:	3 kg
Luchtdruk:	4 tot en met 6 kgf/cm2
Luchtverbruik:	Ongeveer 5 l/min

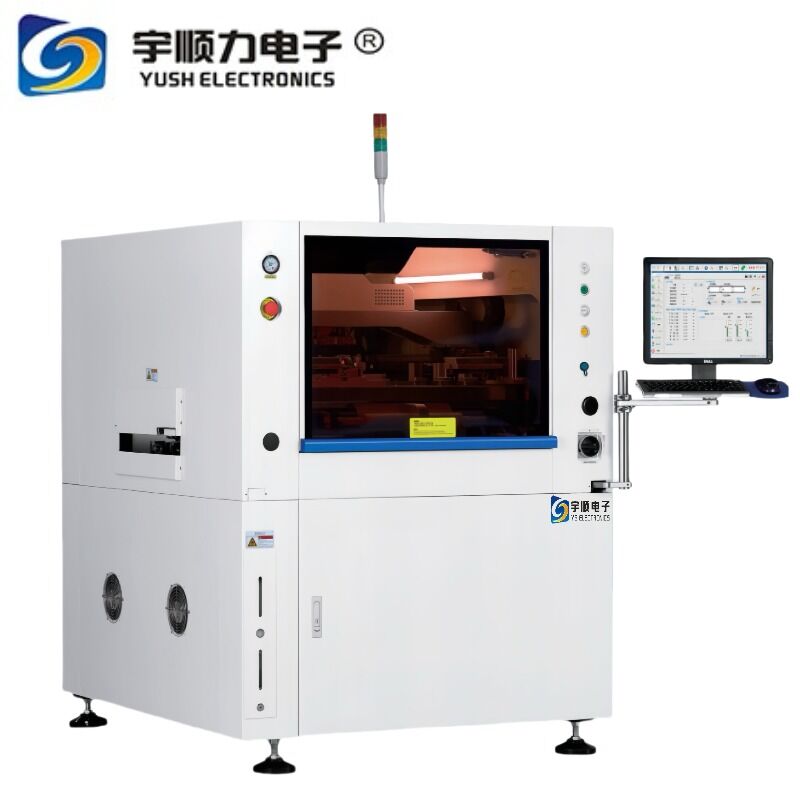

YS-G9 Fully Automatic Solder Paste Printer White

YS-G9 Fully Automatic Solder Paste Printer

Machine Performance Specifications

Parameter	Specification
Repeat Position Accuracy	±10μm @ 6σ, CPK ≥ 2.0
Print Accuracy	±18μm @ 6σ, CPK ≥ 2.0
NCP Cycle Time (excluding cleaning/printing)	7 seconds
HCP Cycle Time (including cleaning/printing)	18 seconds per piece
Process Cycle Time	4 minutes
Transfer Line Cycle Time	2 minutes

Substrate Processing Parameters

Parameter	Specification
Maximum Board Size	450 × 340 mm
Minimum Board Size	50 × 50 mm
Board Thickness	0.4 - 6 mm
Camera Mechanical Range	450 × 340 mm
Maximum Board Weight	3 kg
Board Edge Clearance	2.5 mm
Board Height	15 mm beyond trait items pin
Transport Speed	900 ± 40 mm/s
Maximum Transport Speed	1500 mm/s (segmented control)
Transport Direction	One section transport guide rail/One stage

Printing Parameters

Parameter	Specification
Print Speed	10 - 200 mm/sec
Print Pressure	0.5 - 10 kg
Print Mode	One/Twice
Squeegee Type	Rubber/Squeegee Blade (angle 45/55/60)
Snap-off	0 - 20 mm
Snap Speed	0 - 20 mm/sec
Template Frame Size	470 × 370 mm - 737 × 737 mm (Thickness: 20-40 mm)
Steel Mesh Positioning Mode	Automatic Y-direction positioning

Cleaning Parameters

Parameter	Specification
Cleaning System	Dry, Wet, Vacuum three modes
High Speed Cleaning	Integrated & weave cleaning
Cleaning System Type	Side spray type
Cleaning Stroke	Automatic generation
Cleaning Position	Pre-cleaning
Cleaning Speed	10 - 200 mm/sec
Cleaning Fluid Consumption	Auto & manually adjustable
Cleaning Paper Consumption	Auto & manually adjustable

Machine Specifications

Parameter	Specification
Power Source	AC: 220V ±10%, 50/60Hz, 2.2KW
Air Pressure	4 - 6 kgf/cm²
Air Consumption	Approximately 5 L/min
Operating Temperature	-20℃ to +45℃
Working Environment Humidity	30% - 60%
Machine Dimensions (without tower light)	1530(H) × 1172(L) × 1385(W) mm
Machine Weight	Approximately 1000 kg
Equipment Load Bearing Requirements	650 kg/m²

Equipment Details

Equipment Model: YS-G9
Dimensions: 1172(L) × 1385(W) × 1530(H) mm
Main Power Supply: AC: 220V ±10%, 50/60Hz, 3KW stable power supply with rated current, British system plug
Main Gas Supply: Stable industrial gas source with pressure of 4.0-6 kgf/cm², pipe diameter 6mm/8mm/10mm/12mm with universal front joint
Machine Weight: Approximately 1000 kg

Equipment Usage Environment

Workshop Temperature: -20℃ to +45℃
Workshop Humidity: 30% - 60%
Static Electricity Protection: ESD grounding and static electricity protection required
Floor Load-bearing Capacity: Must be ≥ 650 kg/m² (pay attention to floor sinking if not on flat surface)
