                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic SMT solder paste printer, high precision PCB depaneling machine, SMT printer with warranty


Gewicht:	1300 kg	Stroom:	10 kW
Spanning:	220V/110V	De grootte van het het schermkader:	650(X)550(Y)-737(X)737(Y) mm
Min PCB-Grootte:	50(X)*50(Y) mm	Max PCB -maat:	510(X)*510(Y) mm
Dikte bereik:	0.2mm6mm	Kromming:	<1%
Kerncomponenten:	Motor	Precisie van het drukwerk:	Stabiel
Kalibratie technologie:	Online-kalibratie	Rubberschuiverdruk:	Software-gecontroleerd
Automatische kaliberbepaling:	Compensatie van slijtage van de spoorstangen	Examensysteem:	Intelligent 2D
Reinigingsstructuur:	Op alcoholbasis

Gewicht:	1300 kg
Stroom:	10 kW
Spanning:	220V/110V
De grootte van het het schermkader:	650(X)550(Y)-737(X)737(Y) mm
Min PCB-Grootte:	50(X)*50(Y) mm
Max PCB -maat:	510(X)*510(Y) mm
Dikte bereik:	0.2mm6mm
Kromming:	<1%
Kerncomponenten:	Motor
Precisie van het drukwerk:	Stabiel
Kalibratie technologie:	Online-kalibratie
Rubberschuiverdruk:	Software-gecontroleerd
Automatische kaliberbepaling:	Compensatie van slijtage van de spoorstangen
Examensysteem:	Intelligent 2D
Reinigingsstructuur:	Op alcoholbasis

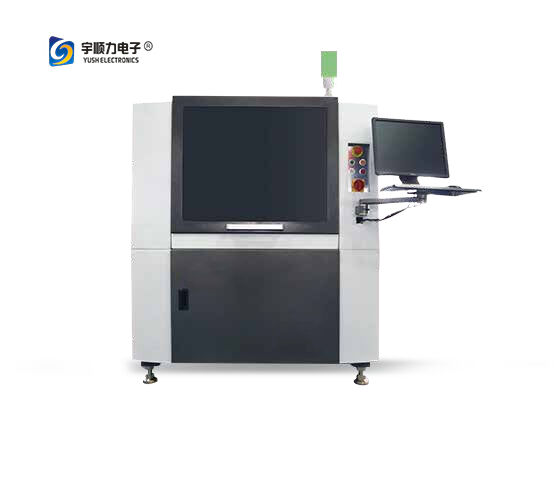

Fully Automatic High Precision SMT Solder Paste Printer

Key Features

Perfect solution for large size product printing
Simple calibration and maintenance procedures
Stable printing quality with consistent results
Independently developed image processing software

Machine Components Overview

Machine housing module
CCD image capture module
Stencil lifting module of Z-axis
Squeegee printing module
Cleaning module
Platform fine adjustment module
Rail and conveyor module
Three color warning lamp
Display and input device

Technical Specifications

Precision, Stability & Intelligence Features

First domestic online calibration technology
New squeegee pressure setting software
Automatic calibration function for rail rod wear compensation
Intelligent 2D examination system
Advanced squeegee design
Each equipment passes CPK test with available PDF report
New alcohol cleaning structure

Advanced Technologies

Precision Guarantee

Our fully automatic SMT solder paste printer ensures exceptional precision through advanced calibration technologies, intelligent examination systems, and robust engineering design for consistent, high-quality printing results in industrial manufacturing applications.
