Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB solder paste printer, semi-automatic PCB printer, PCB depaneling solder printer


Gewicht:	300 kg	Stroom:	10 kW
Spanning:	220V, 110V	Bruto vermogen:	2 kW
Max PCB -maat:	1200*300mm	Nauwkeurigheid afdrukken:	± 0,02 mm
PCB-dikte:	0.2-2.0 mm	Voeding:	220V, 50/60 Hz
Het werk lijstgrootte:	1280X300mm	Maximale framegrootte:	1300X320mm
Maximale afdrukgrootte:	1200x300mm	Max stencil maat:	1260 mm * 430 mm
Micro-aanpassingsbereik:	± 10 mm	Nauwkeurigheid van machinereproduceerbaarheid:	±0,02 mm
Luchtdruk:	0,4-0,6 MPa

Gewicht:	300 kg
Stroom:	10 kW
Spanning:	220V, 110V
Bruto vermogen:	2 kW
Max PCB -maat:	1200*300mm
Nauwkeurigheid afdrukken:	± 0,02 mm
PCB-dikte:	0.2-2.0 mm
Voeding:	220V, 50/60 Hz
Het werk lijstgrootte:	1280X300mm
Maximale framegrootte:	1300X320mm
Maximale afdrukgrootte:	1200x300mm
Max stencil maat:	1260 mm * 430 mm
Micro-aanpassingsbereik:	± 10 mm
Nauwkeurigheid van machinereproduceerbaarheid:	±0,02 mm
Luchtdruk:	0,4-0,6 MPa

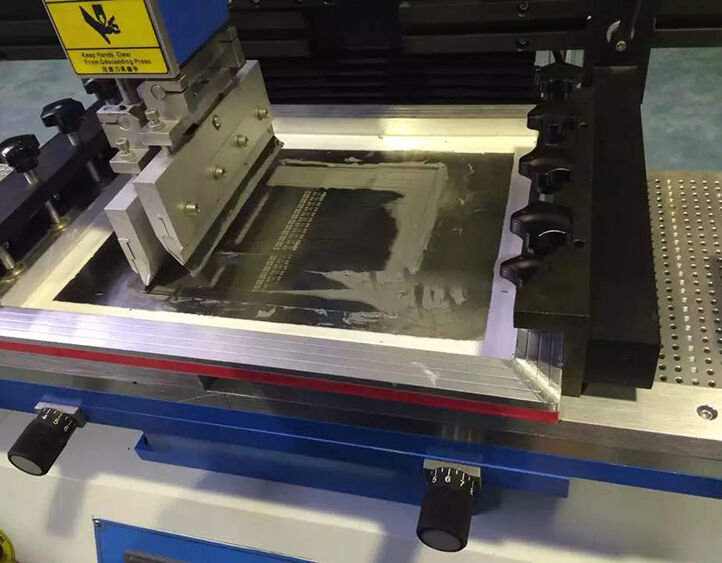

Semi-Automatic SMT PCB Solder Paste Printer

High-precision semi-automatic solder paste printing solution for SMT PCB assembly, designed for reliable performance in manufacturing environments.

Technical Specifications

Working table size (X,Y direction)	1280 × 300 mm
Maximum frame size (X,Y direction)	1300 × 320 mm
Maximum print size of PCB board (X,Y direction)	1200 × 300 mm
Maximum PCB stencil sizes	1260 mm × 430 mm
PCB thickness range	0 - 100.0 mm
Positioning method	PCB outer or pin holes positioning
Micro-adjustment range (X, Y)	Front/back ±10 mm, Right/left ±10 mm
Printing accuracy	±0.01 mm
Machine repeatability accuracy	±0.02 mm
Minimum internal clearance	0.35 mm
Air pressure requirement	0.4 - 0.6 MPa / 4 - 6 kgf/cm²
Power supply	Single phase 220V, 50/60 Hz, 100W
Dimensions	1600 mm × 900 mm × 1650 mm
Weight	Approximately 300 kg
