Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB depaneling machine, CNC V-CUT machine manufacture, PCB depaneling machine with warranty


Gewicht:	185 kg	Stroom:	10 kW
Spanning:	220V, 110V	Maaibreedte:	Longitudinale 70 mm
Breed:	380 mm	Dikte:	0,6 ~ 2,5 mm
Snelheid:	12 mm/min	Totale messen:	Bovenste 10 stuks, beneden 10 stuks
Spilmotor:	3KW omvormer, 3,7KW kunststof asmotor, 120W kratmotor, 60W gesloten	Mechanische dimensies:	1200 mm x 980 mm x 1400 mm (B x D x H)
Maaibreedte:	75 mm breed verticaal 480 mm	Dikte bereik:	00,8-3,2 mm
Kartonnen V-snede:	≥10 pit (op en neer 10 messen)	Aluminiumplaat V-gesneden:	≥5 pit (op en neer 4 messen)
Vezelplaat V-snede:	≥8 pit (op en neer 8 messen)

Gewicht:	185 kg
Stroom:	10 kW
Spanning:	220V, 110V
Maaibreedte:	Longitudinale 70 mm
Breed:	380 mm
Dikte:	0,6 ~ 2,5 mm
Snelheid:	12 mm/min
Totale messen:	Bovenste 10 stuks, beneden 10 stuks
Spilmotor:	3KW omvormer, 3,7KW kunststof asmotor, 120W kratmotor, 60W gesloten
Mechanische dimensies:	1200 mm x 980 mm x 1400 mm (B x D x H)
Maaibreedte:	75 mm breed verticaal 480 mm
Dikte bereik:	00,8-3,2 mm
Kartonnen V-snede:	≥10 pit (op en neer 10 messen)
Aluminiumplaat V-gesneden:	≥5 pit (op en neer 4 messen)
Vezelplaat V-snede:	≥8 pit (op en neer 8 messen)

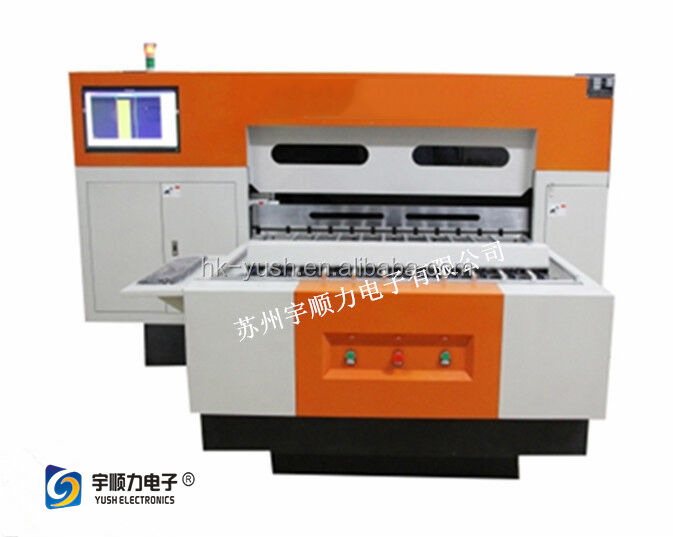

Automatic CNC V-CUT Machine Manufacture

Automatic CNC V-CUT Machine

Professional manual V-cut machine for PCB V-groove scoring and depaneling applications.

Key Specifications

Cutting Width: Longitudinal 70mm; Wide: 380mm
Material Thickness: 0.6-2.5 mm
Cutting Speed: 12 mm/min
Total Blades: Upper 10 pieces, Lower 10 pieces

Operation Guidelines

Speed Adjustment

V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower speeds, while thinner plates can use faster settings. For standard 1.6mm plate thickness, recommended speed is approximately 25.

Cutting Parameters

V-CUT aluminum base plate conveying speed determines cutter knife shaft speed. Standard plates can be processed at slower speeds for optimal results.

Tool Compatibility

Standard V-CUT knives are not suitable for aluminum plates. Specialized aluminum plate V-CUT knives can also be used for standard V-cut applications.

Cooling Requirements

When processing aluminum plates, cooling water or alcohol must be used. Never operate without proper cooling fluid.

YS-1200480 Aluminum V-CUT Machine Specifications

Model Number	YS-1200
Cutting Width	75mm vertical × 480mm wide
Material Thickness	0.8-3.2 mm
Cardboard Capacity	≥10 cuts per cycle (10 upper + 10 lower knives)
Aluminum Plate Capacity	≥5 cuts per cycle (4 upper + 4 lower knives)
Fiberboard Capacity	≥8 cuts per cycle (8 upper + 8 lower knives)
Processing Speed	8 m/min
Spindle Motor	3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed motor
Machine Dimensions	1200mm × 980mm × 1400mm (W × D × H)
Weight	185KG

Standard Accessories

Washer set, V-CUT knife (4 pieces), Shield bearing (10 pieces), Wrench set, Hex key set, Blades turret (1 piece)
