                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic PCB V groove cutting machine, PCB depaneling V-cut machine, V-cut PCB depaneling equipment


Spanning:	220V	Gewicht:	185 kg
Stroom:	3,7 kW	Maaibreedte:	Longitudinale 70 mm
breedte:	380 mm	Dikte bereik:	0,6 ~ 2,5 mm
Snijsnelheid:	12 mm/min	Totale messen:	Bovenste 10 stuks, beneden 10 stuks
Modelnummer:	YSV-4A	Maximale dikte:	3,2 mm
Capaciteit aluminium plaat:	V≥5 put	Vezelplaatcapaciteit:	V≥8 put
Spilmotorvermogen:	3 kW	Afmetingen:	1200 mm x 980 mm x 1400 mm
Machinegewicht:	145 kg

Spanning:	220V
Gewicht:	185 kg
Stroom:	3,7 kW
Maaibreedte:	Longitudinale 70 mm
breedte:	380 mm
Dikte bereik:	0,6 ~ 2,5 mm
Snijsnelheid:	12 mm/min
Totale messen:	Bovenste 10 stuks, beneden 10 stuks
Modelnummer:	YSV-4A
Maximale dikte:	3,2 mm
Capaciteit aluminium plaat:	V≥5 put
Vezelplaatcapaciteit:	V≥8 put
Spilmotorvermogen:	3 kW
Afmetingen:	1200 mm x 980 mm x 1400 mm
Machinegewicht:	145 kg

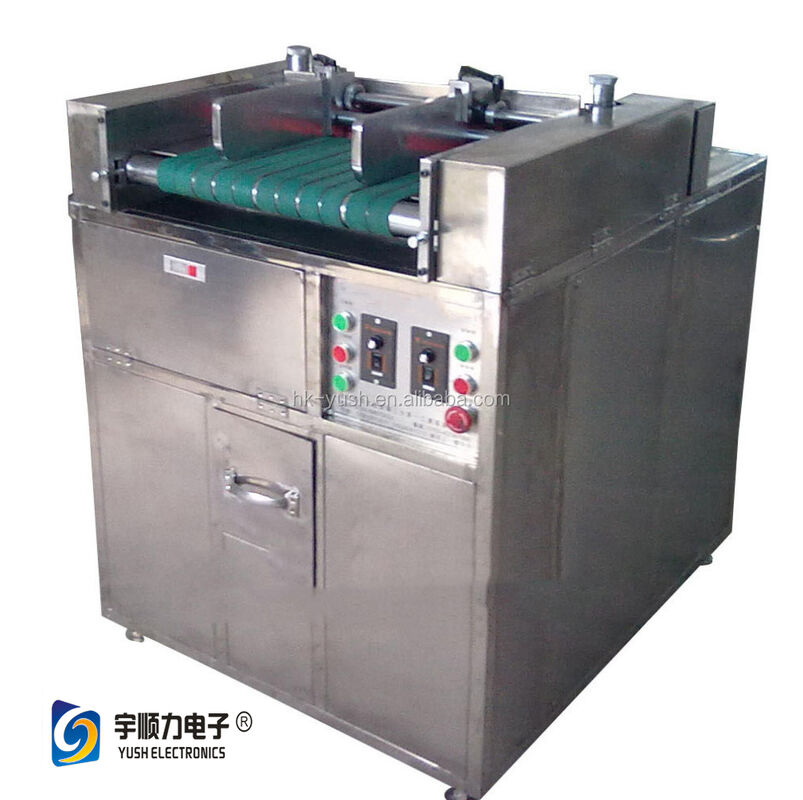

Automatic PCB V groove Machine . V-cut Cutting Machine

Automatic PCB V Groove Machine - V-Cut Cutting Machine

Professional manual V-cut machine for PCB depaneling and scoring applications, designed for precision cutting of printed circuit boards.

Key Specifications

Cutting Width: Longitudinal 70mm; Wide: 380mm

Material Thickness: 0.6-2.5 mm

Cutting Speed: 12 mm/min

Total Blades: Upper 10 pieces, Lower 10 pieces

Operation Guidelines

V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower speeds; thinner plates can use faster speeds. For standard 1.6mm plate thickness, recommended speed is approximately 25.
V-CUT aluminum base plate conveying speed determines cutter knife shaft speed. Standard plates can be processed at slower speeds.
V-CUT knives are not suitable for standard plates when cutting aluminum plates. Aluminum plates with V-cut knife flash can also be used for standard V-cut applications.
When cutting aluminum plates, cooling water or alcohol must be used for cooling.

YSV-4A Aluminum V-Cut Machine Technical Details

480 V-CUT aluminum plate cutting machine designed for high-performance PCB depaneling.

Specification	Details
Model Number	YSV-4A
Cutting Width	75mm wide vertical, 480mm horizontal
Material Thickness	0.8-3.2 mm
Cardboard Capacity	≥10 cuts per pass (10 upper and lower knives)
Aluminum Plate Capacity	≥5 cuts per pass (4 upper and lower knives)
Fiberboard Capacity	≥8 cuts per pass (8 upper and lower knives)
Cutting Speed	8 m/min
Motor Specifications	3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed motor
Machine Dimensions	1200mm × 980mm × 1400mm (W × D × H)
Weight	145KG
Included Accessories	Washer set, V-CUT knife (4), Shield bearing (10), Wrench set, Hex key set, Blades turret (1)

Packaging & Shipping

Our Services

Company Information

YUSH Electronic Technology Co., Ltd is a professional manufacturer and trader specializing in the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, we benefit from convenient transportation access. All our products comply with international quality standards and are highly regarded in various global markets. We welcome custom orders and look forward to establishing successful business relationships with clients worldwide.

Frequently Asked Questions

Who are we?

Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our organization employs 301-500 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality standards.

What products do we offer?

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why choose us over other suppliers?

Founded in 2004 and located in Jiangsu, the world's manufacturing hub, YUSH Electronic Technology specializes in professional PCB separator and depanelizer electronic equipment machinery. We maintain advanced production and processing equipment with experienced technical teams.

What services do we provide?

Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
