Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB V Cut Machine 0.05mm accuracy, AC220V PCB depaneling machine, 50HZ parallel PCB cutter


Gewicht:	185 kg	Stroom:	10 kW
Spanning:	220V, 110V	Gasbron:	0,5Mpa 50NL/Min
Maximale bewerkingsgrootte:	1250 mm * 650 mm	Minimale bewerkingsgrootte:	105 mm * 105 mm
plaatdikte:	0.4 mm ~ 3.2 mm	Parallelle nauwkeurigheid:	± 0.05mm
Precisie van de resterende dikte:	± 0.05mm	Machinegrootte:	L2400mm * B1900mm * H1600mm
Voeding:	AC220V ± 5V, 1¢ 50HZ 5KVA	Vacuümvereiste:	15m3/min, 50mm/Aq
Precisie van de toonhoogte:	± 0.05mm	Uitlijning van het mes:	± 0.05mm
Kerncomponenten:	PLC, Motor, Lager, Motor, Toestel, Pomp

Gewicht:	185 kg
Stroom:	10 kW
Spanning:	220V, 110V
Gasbron:	0,5Mpa 50NL/Min
Maximale bewerkingsgrootte:	1250 mm * 650 mm
Minimale bewerkingsgrootte:	105 mm * 105 mm
plaatdikte:	0.4 mm ~ 3.2 mm
Parallelle nauwkeurigheid:	± 0.05mm
Precisie van de resterende dikte:	± 0.05mm
Machinegrootte:	L2400mm * B1900mm * H1600mm
Voeding:	AC220V ± 5V, 1¢ 50HZ 5KVA
Vacuümvereiste:	15m3/min, 50mm/Aq
Precisie van de toonhoogte:	± 0.05mm
Uitlijning van het mes:	± 0.05mm
Kerncomponenten:	PLC, Motor, Lager, Motor, Toestel, Pomp

AC220V 50HZ Parallel Accuracy 0.05mm PCB V Cut Machine

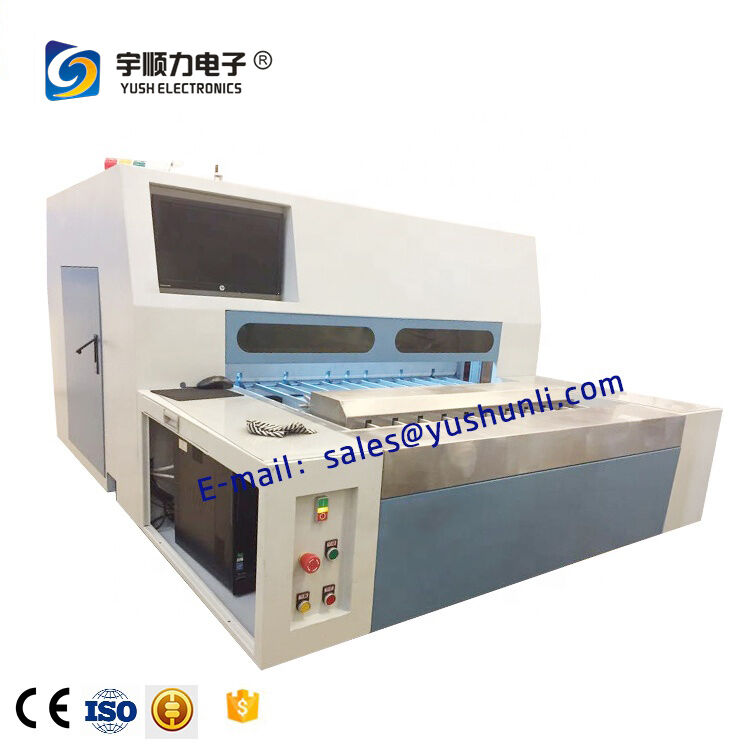

CNC V-CUT Machine YSVC-1200 / PCB V Cut Machine

Technical Specifications

Power	AC220V ± 5V, 1¢ 50HZ 5KVA
Gas Source	0.5Mpa 50NL/Min
Machining Maximum Size	1250mm × 650mm
Processing Minimum Size	105mm × 105mm
Board Thickness	0.4mm ~ 3.2mm
Precision	Parallel accuracy ± 0.05mm
Machine Size	L2400mm × W1900mm × H1600mm
Machine Weight	185KG

Machine Features & Capabilities

Machine Name: CNC V-CUT machine YSVC-1200
Power: AC220V ± 5V, 1¢ 50HZ 5KVA (requires power regulator)
Gas Source: 0.5Mpa 50NL/Min
Vacuum: Minimum wind volume 15m³/min; minimum static pressure 50mm/Aq
Machining maximum size: 1250mm × 650mm
Processing minimum size: 105mm × 105mm
Board Thickness: 0.4mm ~ 3.2mm
High Precision: Parallel accuracy ± 0.05mm, residual thickness precision: ± 0.05mm, pitch: ± 0.05mm, Alignment of upper and lower blade ± 0.05mm

Processing Position: Distance from first cutter to edge minimum 8mm, unlimited number of cutting lines per side, arbitrary setting capability.

Machine Tool Configuration: Number of processing jump knives, blade positions, and tool positions can be arbitrarily set.

Residual Thickness Setting: Three types of residual thickness settings available for three different depth variations on a single surface.

Machine Structure: Casting machine base integrated design approach ensures superior stability and performance reliability.

Operating System

Microsoft WindowsXP system with all-English operation interface for easy understanding and operation
Simple parameter setting procedure: set plate dimensions, cutting line positions, then complete residual thickness processing settings
Real-time illustration displays with process tracking icons showing current processing position
Test function prevents scrap due to improper data settings - test cutting verifies position accuracy before full processing
Tool protection function prevents damage from improper residual thickness and tool outer diameter settings

Hardware Configuration

All machine axes utilize imported servo control systems for maximum stability and precision performance
Plate pushing axis, knife shaft, and upper knife-axis feature servo motors and servo wheels
Main control by United States six-axis motion control card for superior motion control
