Name: SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-GW50
Price: 75.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Certificering: ce

Modelnummer: YS-GW50

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $50,000-100,000 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT stencil laser cutting machine, fiber laser solder paste printer, PCB depaneling laser cutter


Gewicht:	2000 kg	Snijsnelheid:	24000 pad/u
Positioneringsnauwkeurigheid:	±2μ	Herhaalde positioneringsnauwkeurigheid:	±2μ
Golflengte:	1070 NM	Afmetingen:	168015001630mm
Platform snelheid:	≤300mm/S	Variatie in locatiedetectie:	0,1 urn
Scherpe Waaier:	X 600 mm * Y 600 MM	tafel formaat:	X 620 mm * Y 620 mm
Snijdikte:	≤0,5 mm	Nadrukdiameter:	25-30 μm
Beste snijeffectiviteit:	Tot 9400 synthetisch diafragma / uur, 13000-14000 standaard diafragma / uur	Herhaalbaarheid van platforms:	± 1,5 μm
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor

Gewicht:	2000 kg
Snijsnelheid:	24000 pad/u
Positioneringsnauwkeurigheid:	±2μ
Herhaalde positioneringsnauwkeurigheid:	±2μ
Golflengte:	1070 NM
Afmetingen:	168015001630mm
Platform snelheid:	≤300mm/S
Variatie in locatiedetectie:	0,1 urn
Scherpe Waaier:	X 600 mm * Y 600 MM
tafel formaat:	X 620 mm * Y 620 mm
Snijdikte:	≤0,5 mm
Nadrukdiameter:	25-30 μm
Beste snijeffectiviteit:	Tot 9400 synthetisch diafragma / uur, 13000-14000 standaard diafragma / uur
Herhaalbaarheid van platforms:	± 1,5 μm
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor

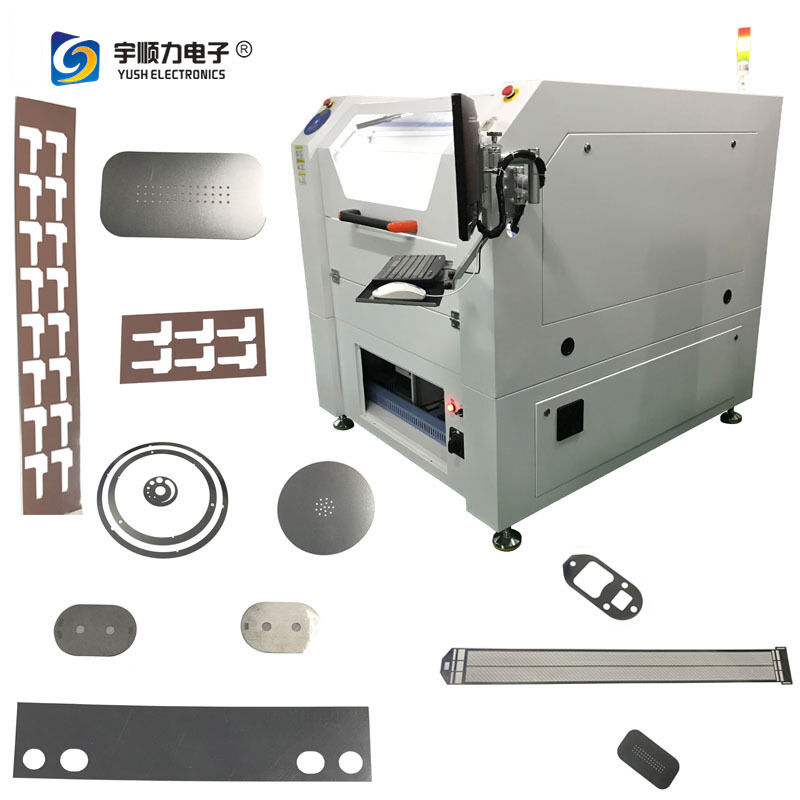

SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer

The YS-GW50 SMT Stencil Fiber Laser Cutting Machine from YUSHElectronic Technology Co., Ltd. is a high-performance solution for solder paste printer applications. This advanced cutting system combines precision engineering with innovative waste management for optimal performance in electronic manufacturing environments.

Key Features and Benefits

Advanced Waste Collection System: Innovative structure design with comprehensive waste and smoke collection that eliminates equipment stability issues caused by chips, slag, and iron dust, significantly extending equipment service life.

High Power Fiber Laser Technology: Semiconductor-pumped solid-state high-power fiber laser increases cutting efficiency and expands the range of machinable products, handling both ordinary metal sheets and precision parts with various thickness requirements.

Specialized Process Solutions: Professional fixture design accommodates materials of various sizes and shapes, optimizing user processes and maximizing equipment value through a complete equipment process system.

Technical Specifications

Positioning Accuracy	±3μm
Platform Repeatability	±1.5μm
Platform Velocity	≤300mm/S
Location Detection Sub Variability	0.1μm
Cutting Range	X 600mm × Y 600mm
Table Size	X 620mm × Y 620mm
Cutting Thickness	≤0.5mm (reference value)
Focus Diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 Synthetic Aperture/hr, 13000-14000 standard aperture/hour (with 0.3mm diameter standard round date, 0.15mm less steel)

Physical Dimensions: 1680 × 1500 × 1630mm | Weight: 1200KG
