                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                V groove PCB depaneling machine, PCB cutting machine with V groove, V groove depaneling tool for PCBs


Gewicht:	350KG	Stroom:	110V/220V AC 60HZ/50HZ
Maat:	L1300W400H1000mm	PCB-dikte:	0,8-3,0 mm
Snijtype:	Lucht	Afstelling van het bovenmes:	0-5 mm
Enkele PCB-breedte:	15-20mm	Materiaal mes:	Skh51 hogesnelheidsstaal
Snijsnelheid:	Verstelbaar door draaiknop	Transportband:	Inbegrepen
Toepasselijke raad:	LED-paneel, vezelplaat, aluminiumplaat (>400 mm)	Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
Meerdere snijders:	Ja	Snijproces:	Onbeperkt
Weergavescherm:	Gap-weergave

Gewicht:	350KG
Stroom:	110V/220V AC 60HZ/50HZ
Maat:	L1300W400H1000mm
PCB-dikte:	0,8-3,0 mm
Snijtype:	Lucht
Afstelling van het bovenmes:	0-5 mm
Enkele PCB-breedte:	15-20mm
Materiaal mes:	Skh51 hogesnelheidsstaal
Snijsnelheid:	Verstelbaar door draaiknop
Transportband:	Inbegrepen
Toepasselijke raad:	LED-paneel, vezelplaat, aluminiumplaat (>400 mm)
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
Meerdere snijders:	Ja
Snijproces:	Onbeperkt
Weergavescherm:	Gap-weergave

v groove Cutting Machine

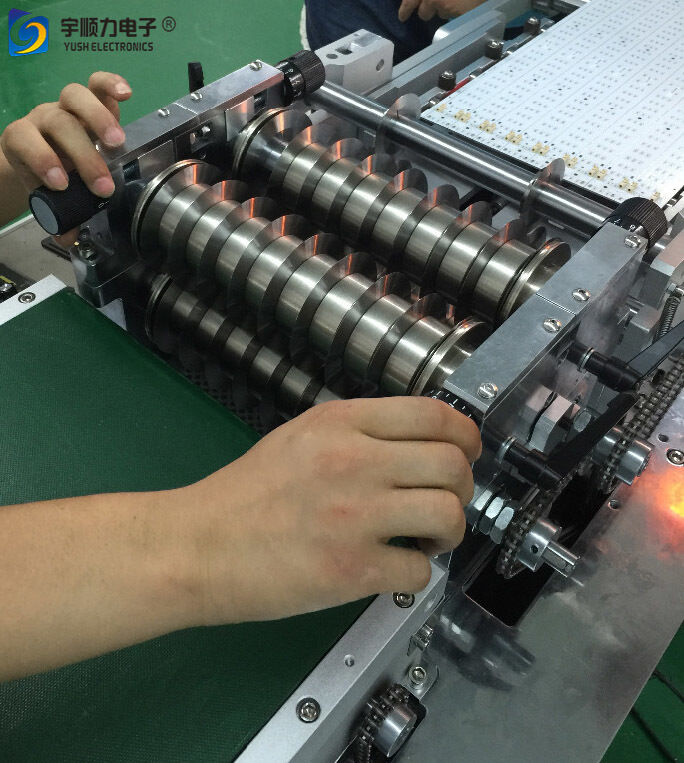

YSVJ-650 V-Groove Cutting Machine

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and handling
Computer screen control with preset production counting and direct gap display
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Top cutter wheel features 0-5mm micro-adjustment capability
Adjustable knife distance suitable for single PCB boards 15-20mm wide
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed with convenient turn-knob adjustment
Integrated conveyor belt for automated board handling and next-machine docking
Versatile material compatibility including LED panels, fiberboard, aluminum boards (400mm+), and specialty boards
Multi-knife operation for simple, efficient mass production

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	1300mm (L) × 400mm (W) × 1000mm (H)
Weight	350kg
Cutting Process	Unlimited cutting capacity
PCB Thickness Range	0.8mm - 3.0mm
Compatible Materials	LED panels, fiberboard, aluminum boards (400mm+), and specialty boards
