Name: Two-slide Separator for PCB Board Cutting-YSVC-650
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 9 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YSVC-650

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $9,000 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine two-slide separator, YSVC-650 PCB board cutter, PCB separator with warranty


Gewicht:	600 kg	Afmetingen:	1220 mm * 1450 mm * 1420 mm
Hoogte -offset:	60 ~ 110 mm	PCB-formaat:	322 mm * 322 mm
PCB-dikte:	5 mm	Spilsnelheid:	50000 tpm/min
Snijsnelheid:	100 mm/sec	drijfsnelheid:	3000 mm/sec
Snijprecisie:	0,01 mm	As precisie:	0,001 mm
Stroom:	2,2 kW AC380V	Luchtdruk:	2 ~ 5KG/cm2
Motorvermogen:	400W	vacuümkracht:	2,2 kW wisselstroom 380 V
Werkgebied:	680 mm * 360 mm * 50 mm

Gewicht:	600 kg
Afmetingen:	1220 mm * 1450 mm * 1420 mm
Hoogte -offset:	60 ~ 110 mm
PCB-formaat:	322 mm * 322 mm
PCB-dikte:	5 mm
Spilsnelheid:	50000 tpm/min
Snijsnelheid:	100 mm/sec
drijfsnelheid:	3000 mm/sec
Snijprecisie:	0,01 mm
As precisie:	0,001 mm
Stroom:	2,2 kW AC380V
Luchtdruk:	2 ~ 5KG/cm2
Motorvermogen:	400W
vacuümkracht:	2,2 kW wisselstroom 380 V
Werkgebied:	680 mm * 360 mm * 50 mm

Two-slide Separator for PCB Board Cutting-YSVC-650

Two-slide Separator for PCB Board Cutting - YSVC-650

Professional two-slide separator designed for precision PCB board cutting and depaneling applications.

Machine Specifications

Physical Dimensions

Dimensions (W × D × H): 1220mm × 1450mm × 1420mm

Height Offset: 60-110mm

Manipulator System

Motor Type: JiaBao series

Positioning Repeatability: 0.001mm

Axis Working Area (Max): 680mm × 360mm × 50mm

Work Station

PCB Fixation: Standard, specialization

PCB Loading/Unloading: Manual

PCB Size (Max): 322mm × 322mm

PCB Thickness (Max): 5mm

Fixturing System

Rigidity Fixturing: Standard

Fixturing Fixation: Mechanical

Spindle Motor

Power: 400W

Spindle Speed: 50,000 rpm/min

Protection: Self / Wind cooling

Cutter Change: Specialization

Routing Capability

Cutting Speed (Max): 100mm/s

Driving Speed (Max): 3000mm/s

Cutting Precision: 0.01mm

Vacuum System

Vacuum Power: 2.2KW AC 380V

Vacuum Plumb: Standard

Utilities

Power: 2.2KW AC380V

Air Supply Pressure: 2-5 KG/cm²

Programming & Control Features

Program Editing

Inline program editing
Function edit: Line, arc, circular, U-curve
Program storage: HDD

Vision & Automation

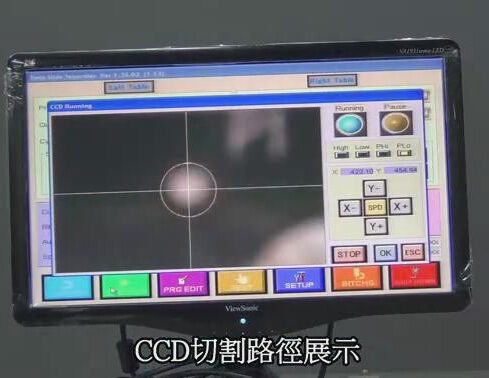

SONE color CCD vision system
Automatic milling cutter offset
Automatic vacuum setup

Operation Monitoring

Machine state indicator
Automatic tool life detection and usage time testing
Motor protection: Overheating, overload, low voltage protection
Motor overload checking: Overload, line normal, low voltage protection
Automatic tool usable time detection
Data statistics: Separate board model, separating count, diverse counting methods
Error recording: Software automatically records all alarms and machine memory

Accuracy Specifications

Axis Precision: 0.001mm

Cutting Precision: 0.1mm

Safety Features

Working area protection with four sealed guards
Front and rear safety door micro-switch sensors (optional)
Emergency stop button
