Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling laser machine, high efficiency laser depaneler, Oxersize YSL-U1200 laser cutter


Gewicht:	1000 kg	Spanning:	220V
Afmetingen:	190019001650 mm	Voeding:	1500W~1530W
Luchttoevoer:	5-7Kgf/cm² of 0,5-0,7 MPa	Besturingssysteem:	Windows 10
Markeringsnauwkeurigheid:	0,02 mm	XY-overdrachtssnelheid:	1000 mm/s
Transportsnelheid:	0-3000 mm/min	De bovenste vrijheid:	20 mm
Bodemvrijheid:	20 mm	Uitlaatpijpdiameter:	50 mm
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor	Stroomfrequentie:	50 Hz
Positioneringsnauwkeurigheid:	±0,02 mm

Gewicht:	1000 kg
Spanning:	220V
Afmetingen:	190019001650 mm
Voeding:	1500W~1530W
Luchttoevoer:	5-7Kgf/cm² of 0,5-0,7 MPa
Besturingssysteem:	Windows 10
Markeringsnauwkeurigheid:	0,02 mm
XY-overdrachtssnelheid:	1000 mm/s
Transportsnelheid:	0-3000 mm/min
De bovenste vrijheid:	20 mm
Bodemvrijheid:	20 mm
Uitlaatpijpdiameter:	50 mm
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
Stroomfrequentie:	50 Hz
Positioneringsnauwkeurigheid:	±0,02 mm

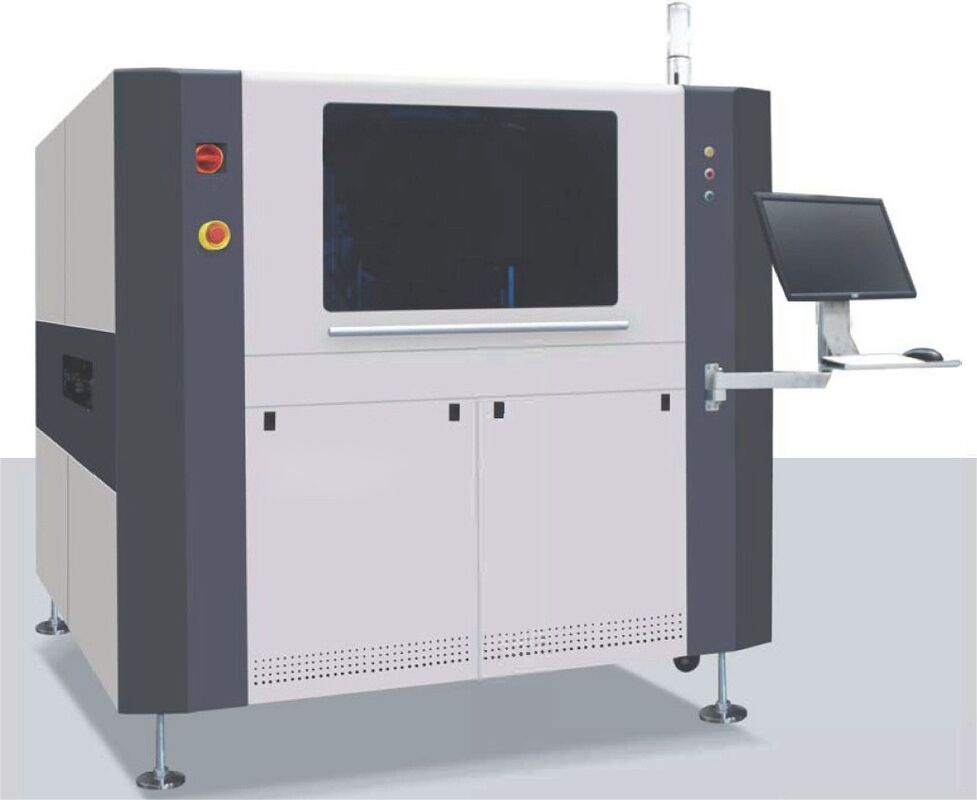

High Quality and High Efficiency Oxersize Laser Maker YSL-U1200

Product Overview

The YSL-U1200 Oxersize Laser Marker delivers exceptional precision and efficiency for industrial marking applications, featuring advanced automation and compatibility with various materials and systems.

Key Features

Automatic control with PC + QC software and Windows 10 operating system
Optional CO2/Fiber/Gr/UV laser marking system configurations
XY precision positioning with CCD + mark precise positioning
Marking position accuracy within 0.02mm
Capable of printing Chinese characters, English, numbers, charts, serial numbers, LOGOs, bar codes, and two-dimensional codes
Supports Gerber, DXF and other document imports
High quality, high efficiency, and high stability with no production consumables
Compatible with Shopfloor/MES System integration
Visual interface for easy operation

Compatible Materials

Supports PCB, FPC, metal shield covers, and various other industrial materials.

Technical Specifications
