Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high speed PCB depaneling machine, high efficiency laser maker YSL-U530, PCB depaneling machine with warranty


Gewicht:	650 kg	Spanning:	220V
Voeding:	220VAC 50Hz	Stroom:	1500W
Afmetingen:	98016001651 mm	Luchttoevoer:	5-7Kgf/cm² of 0,5-0,7 MPa
Afdruknauwkeurigheid:	0,02 mm	Overdrachtssnelheid:	Maximum 1000mm/s
XY-snelheid:	1000 m/s (1500 mm/S optioneel)	Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
controlesysteem:	PC+ Bewegingsbesturing+ Servomotor	Breedteaanpassing:	Automatisch CNC
Besturingssysteem:	Windows 10	Interface:	Engels
Richting:	Van links naar rechts of van rechts naar links

Gewicht:	650 kg
Spanning:	220V
Voeding:	220VAC 50Hz
Stroom:	1500W
Afmetingen:	98016001651 mm
Luchttoevoer:	5-7Kgf/cm² of 0,5-0,7 MPa
Afdruknauwkeurigheid:	0,02 mm
Overdrachtssnelheid:	Maximum 1000mm/s
XY-snelheid:	1000 m/s (1500 mm/S optioneel)
Kerncomponenten:	PLC, motor, lager, versnellingsbak, motor
controlesysteem:	PC+ Bewegingsbesturing+ Servomotor
Breedteaanpassing:	Automatisch CNC
Besturingssysteem:	Windows 10
Interface:	Engels
Richting:	Van links naar rechts of van rechts naar links

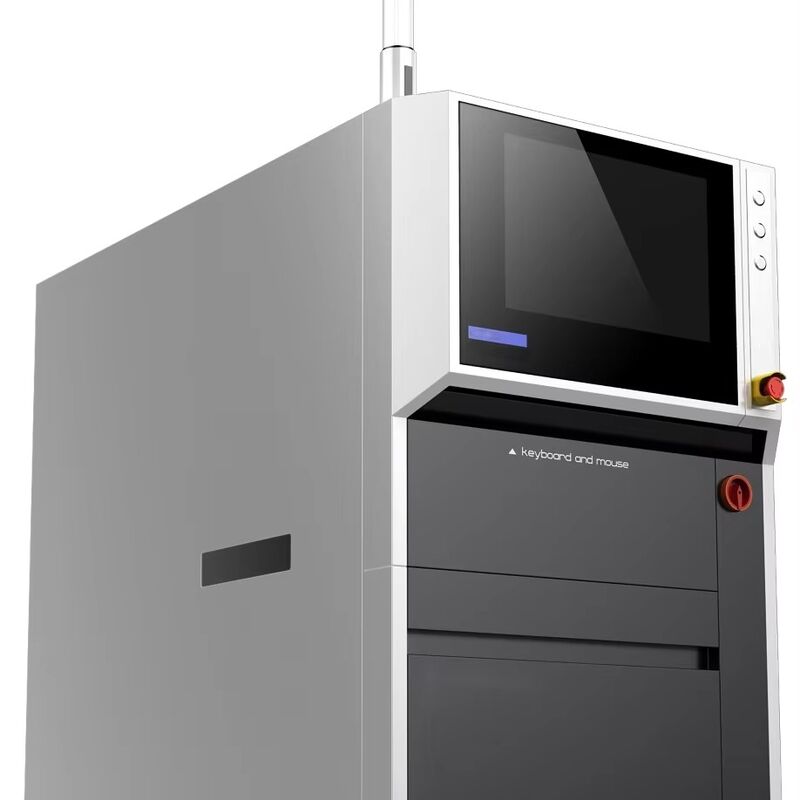

High Speed and High Efficiency Laser Maker YSL-U530

Key Features

Automated control with English interface
Windows 10 operating system compatibility
Dual camera system for fiducials and pattern verification
0.02mm printing accuracy for precision marking
Versatile marking capabilities: characters, numbers, logos, barcodes, QR codes
Shopfloor/MES system connectivity
Supports PCB, FPC, metal and various materials
Intuitive visual interface
Optional inverter function

Technical Specifications

Control System	PC + Motion Control + Servo Motor
Direction	Left to Right or Right to Left
Width Adjustment	CNC Automatic Width Adjustment
Transfer Speed	Maximum 1000mm/S
X-Y Transfer Speed	1000mm/S (1500mm/S Optional)

Integrated Dust Removal System

This integrated dust removal system is specifically designed for our laser maker to effectively remove dust produced during laser operation, ensuring clean and efficient performance.

Dust Removal System Features
