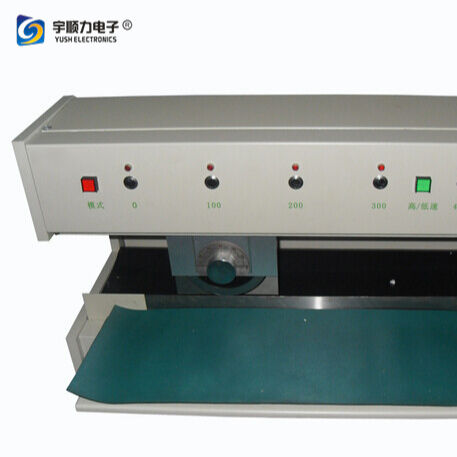

Name: Pcb Guillotine/ Pcb Lead Cutter/ Pcb Lead Cutting Machine [YSV-1A]
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-1A
Price: 3 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YSV-1A

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $3,000 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB guillotine lead cutter, PCB depaneling machine YSV-1A, PCB lead cutting machine


Gewicht:	55 kg	Voeding:	110/220 V
Verminder de snelheid:	100/200/300/500 mm/s	Polen-aantal:	1
Type:	Lucht	Maat:	780 x 460 x 560 mm
Dikte:	0,6-3,5 mm	Model:	YSV-1A
Lengte:	460 of 600 mm	Snelheid:	100/200/300/500 mm/s
Voeding:	110/220V	Machinegrootte:	770510450mm
Machinegewicht:	55 kg	Kerncomponenten:	Motor
Messpeling:	Verstelbaar

Gewicht:	55 kg
Voeding:	110/220 V
Verminder de snelheid:	100/200/300/500 mm/s
Polen-aantal:	1
Type:	Lucht
Maat:	780 x 460 x 560 mm
Dikte:	0,6-3,5 mm
Model:	YSV-1A
Lengte:	460 of 600 mm
Snelheid:	100/200/300/500 mm/s
Voeding:	110/220V
Machinegrootte:	770510450mm
Machinegewicht:	55 kg
Kerncomponenten:	Motor
Messpeling:	Verstelbaar

Pcb Guillotine/ Pcb Lead Cutter/ Pcb Lead Cutting Machine [YSV-1A]

PCB Guillotine / PCB Lead Cutter / PCB Lead Cutting Machine [YSV-1A]

Technical Specifications

Model	YSV-1A
Length (mm)	460 or 600
Speed (mm/s)	100/200/300/500
Thickness (mm)	0.6-3.5
Power Supply (V)	110/220
Size (mm)	770×510×450
Weight	55kg

Key Features

Separate pre-scored PCB assembly without stress on either PCB or component
One-touch programming of cut length with digital display
Separating speed is adjusted by a rotary knob
Handle intermittent scoring or cut-outs
Board with projected component can be cut precisely
Large stainless steel platform on both sides of cutting blade prevents board wobble; table height and angle are adjustable
Optional PCB conveyor belt to remove finished board
Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear
