Name: Pcb Board Layers Separator / Pcb Board Suppliers Separator
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVJ-650
Price: 419.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YSVJ-650

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $39,800 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine separator, PCB board layers separator, PCB suppliers separator machine


Gewicht:	350KG	Maat:	L1300W400H1000mm
Stroom:	110V/220V AC 60HZ/50HZ	PCB-dikte:	0,8-3,0 mm
Snijsnelheid:	Verstelbaar	Afstelling van het bovenmes:	0-5 mm
Bordbreedtebereik:	15-20mm	Materiaal mes:	Skh51 hogesnelheidsstaal
Kerncomponenten:	PLC, motor	Snijproces:	Onbeperkt
Toepasselijke borden:	LED-paneel, vezelplaat, aluminiumplaat (>400 mm)	Meerdere snijders:	Ja
Transportband:	Inbegrepen	Computercontrole:	Ja
Verstelbare mesafstand:	Ja

Gewicht:	350KG
Maat:	L1300W400H1000mm
Stroom:	110V/220V AC 60HZ/50HZ
PCB-dikte:	0,8-3,0 mm
Snijsnelheid:	Verstelbaar
Afstelling van het bovenmes:	0-5 mm
Bordbreedtebereik:	15-20mm
Materiaal mes:	Skh51 hogesnelheidsstaal
Kerncomponenten:	PLC, motor
Snijproces:	Onbeperkt
Toepasselijke borden:	LED-paneel, vezelplaat, aluminiumplaat (>400 mm)
Meerdere snijders:	Ja
Transportband:	Inbegrepen
Computercontrole:	Ja
Verstelbare mesafstand:	Ja

Pcb Board Layers Separator / Pcb Board Suppliers Separator

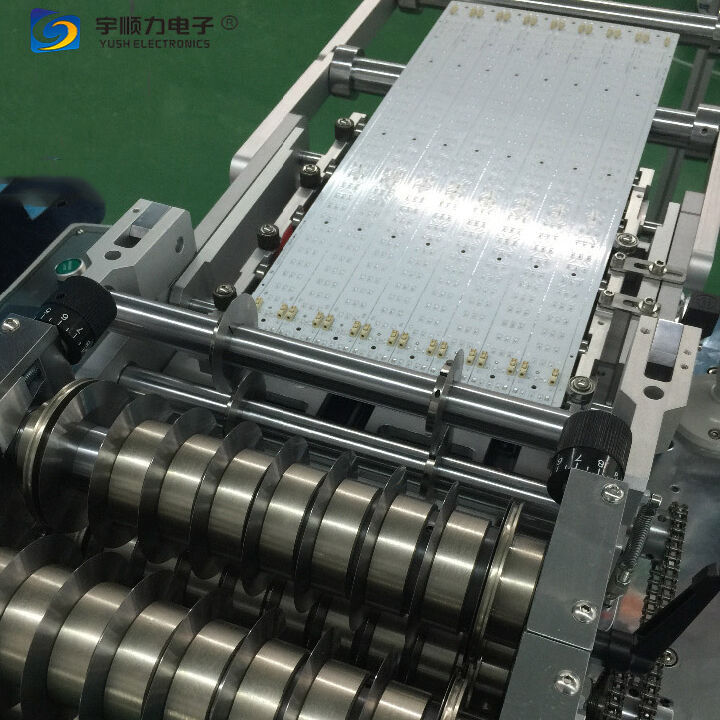

YSVJ-650 PCB Board Layers Separator

Key Features

Integral shaft design for top and bottom knives ensures easy installation and maintenance
Computer screen control with production counting and direct gap display
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables batch processing of several boards simultaneously
Top cutter wheel adjustable from 0-5mm for precision control
Adjustable knife distance suitable for single PCB boards 15-20mm wide
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed with convenient turn-knob adjustment
Integrated conveyor belt for automated output and seamless machine integration
Versatile application for LED panels, fiberboards, aluminum boards (400mm+) and special boards
Multi-knife operation for simple, efficient mass production

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (400mm+), and special boards
