Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB depaneling machine, multi-blade PCB depaneling machine, PCB assembly depaneling machine


Gewicht:	350KG	Maat:	L1300W400H1000mm
Stroom:	110V/220V AC 60HZ/50HZ	PCB-dikte:	0,8-3,0 mm
Snijsnelheid:	Verstelbaar	Afstelling van het bovenmes:	0-5 mm
Bordbreedtebereik:	15-20mm	Materiaal mes:	Skh51 hogesnelheidsstaal
Snijproces:	Onbeperkt	Toepasselijke raad:	LED-paneel, vezelplaat, aluminiumplaat (>400 mm)
Kerncomponenten:	PLC, motor	Transportband:	Inbegrepen
Meerdere snijders:	Ja	Stress verminderen:	Verminderd
Weergavescherm:	Gap-weergave

Gewicht:	350KG
Maat:	L1300W400H1000mm
Stroom:	110V/220V AC 60HZ/50HZ
PCB-dikte:	0,8-3,0 mm
Snijsnelheid:	Verstelbaar
Afstelling van het bovenmes:	0-5 mm
Bordbreedtebereik:	15-20mm
Materiaal mes:	Skh51 hogesnelheidsstaal
Snijproces:	Onbeperkt
Toepasselijke raad:	LED-paneel, vezelplaat, aluminiumplaat (>400 mm)
Kerncomponenten:	PLC, motor
Transportband:	Inbegrepen
Meerdere snijders:	Ja
Stress verminderen:	Verminderd
Weergavescherm:	Gap-weergave

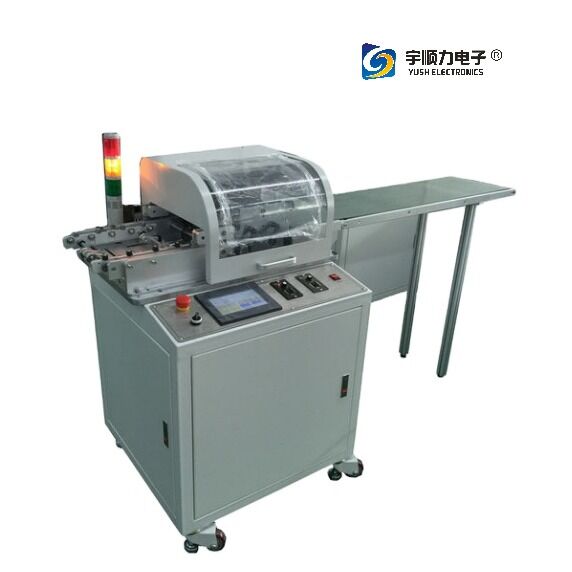

High Quality SMT Multi Blades PCB Depaneling Machine for PCB Assembly

High Quality SMT Multi Blades PCB Depaneling Machine

Advanced PCB depaneling machine designed for efficient PCB assembly with multi-blade cutting technology.

Key Features

Integral shaft design for top and bottom knives ensures easy installation and handling
Computer screen control with production counting and direct gap display
Capable of cutting all V-cut PCB boards with minimal stress
Reduces stress to prevent solder joint cracking during depaneling
Multiple cutter wheels enable cutting several boards simultaneously
Top cutter wheel adjustable from 0-5mm for precision control
Adjustable knife distance suitable for single PCB boards 15-20mm wide
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt for automatic board ejection and next-machine docking
Versatile application for LED panels, fiberboards, aluminum boards (400mm+) and special boards
Multi-blade operation ensures simple, efficient performance for mass production

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350kg
Cutting Process	Unlimited operation
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards
