Name: Automatic High Working Efficiency 220v/50Hz Fiber Laser Marking Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-M20D
Price: 9.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: 280W

Merknaam: YUSH

Modelnummer: YS-M20D

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $9,800-10,800 / set

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v fiber laser marking machine, automatic PCB depaneling machine, high efficiency laser marking system


Gewicht:	120 kg	laserkracht:	20W
Golflengte:	1064 nm	M2-factor:	<1,5
Markeringsbereik:	140mm*140mm	Focusafstand:	162 mm
Minimale lijnbreedte:	0,05 mm	Minimumkarakter:	0.3 mm
Het Tarief van de laserherhaling:	1-4000 kHz	Pulsbreedte:	2-350 ns
Gravurediepte:	00,01 mm	Herhaalbaarheid:	+/- 0,002 mm
Stroomverbruik:	0,5 kW	Ingangsspanning:	220V/50HZ
Afmetingen:	800 mm * 680 mm * 1500 mm

Gewicht:	120 kg
laserkracht:	20W
Golflengte:	1064 nm
M2-factor:	<1,5
Markeringsbereik:	140mm*140mm
Focusafstand:	162 mm
Minimale lijnbreedte:	0,05 mm
Minimumkarakter:	0.3 mm
Het Tarief van de laserherhaling:	1-4000 kHz
Pulsbreedte:	2-350 ns
Gravurediepte:	00,01 mm
Herhaalbaarheid:	+/- 0,002 mm
Stroomverbruik:	0,5 kW
Ingangsspanning:	220V/50HZ
Afmetingen:	800 mm * 680 mm * 1500 mm

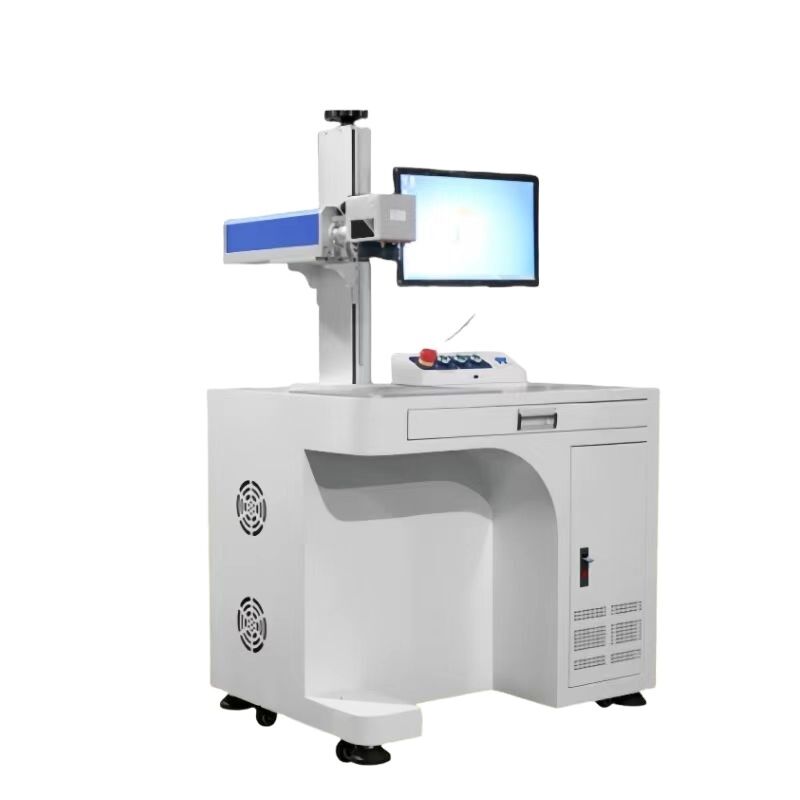

Automatic High Working Efficiency 220v/50Hz Fiber Laser Marking Machine

This advanced fiber laser marking machine delivers exceptional performance with automatic operation and high working efficiency, designed for industrial manufacturing applications.

Equipment Analysis

MOPA Fiber Laser Marking Machine Advantages

MOPA series utilize direct electrically modulated semiconductor laser seed source technology with perfect laser characteristics and superior pulse shape control
Independent control of pulse frequency and pulse width with constant peak power transmission capability
Compatible with wider range of marking substrates compared to Q-switched fiber lasers
Significant energy savings with low operational costs
Maintenance-free laser operation with no lens adjustments or cleaning required
Laser diode pump source with optical cable transmission for compact design
Excellent heat dissipation with simple air cooling system, no water cooling required
Robust performance in harsh environments including shock, vibration, high temperature, and dust
Processing speed 2-3 times faster than traditional laser marking machines

Technical Specifications

Parameter	YS-M20D	YS-M30D
Laser Output Power	20W	20W
Central Wavelength	1064nm	1064nm
M2	<1.5	<1.6
Marking Range	140mm × 140mm	200mm × 200mm
Focal Distance	Approx. 162mm	Approx. 290mm
Minimum Line Width	0.05mm	0.05mm
Minimum Character	0.3mm	0.3mm
Laser Repetition Rate	1-4000kHz	1-4000kHz
Pulse Width	2-350ns	2-350ns
Engraving Depth	0.01mm	0.01mm
Repeatability	±0.002mm	±0.002mm
Overall Power	0.5KW	0.6KW
Rated Input Power	0.5KW	0.6KW
Cooling System	Air Cooling	Air Cooling
Electricity Requirement	220v/50Hz	220v/50Hz
Supported Formats	AI, BMP, DST, DWG, DXF, LAS, PLA	AI, BMP, DST, DWG, DXF, LAS, PLA
Machine Dimensions	800mm × 680mm × 1500mm	800mm × 680mm × 1500mm

Component Analysis

Company Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery.

With advanced production and processing equipment and an experienced development team, half of whom have over 10 years of experience in the electronic equipment industry, YUSH has been developing PCB separation technology since 2004.

The company focuses on product quality, safety, and innovation, delivering high-quality, stable performance, and cost-effective products that improve production yields and enhance customer competitiveness. YUSH offers various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types.

Due to excellent quality and competitive pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
