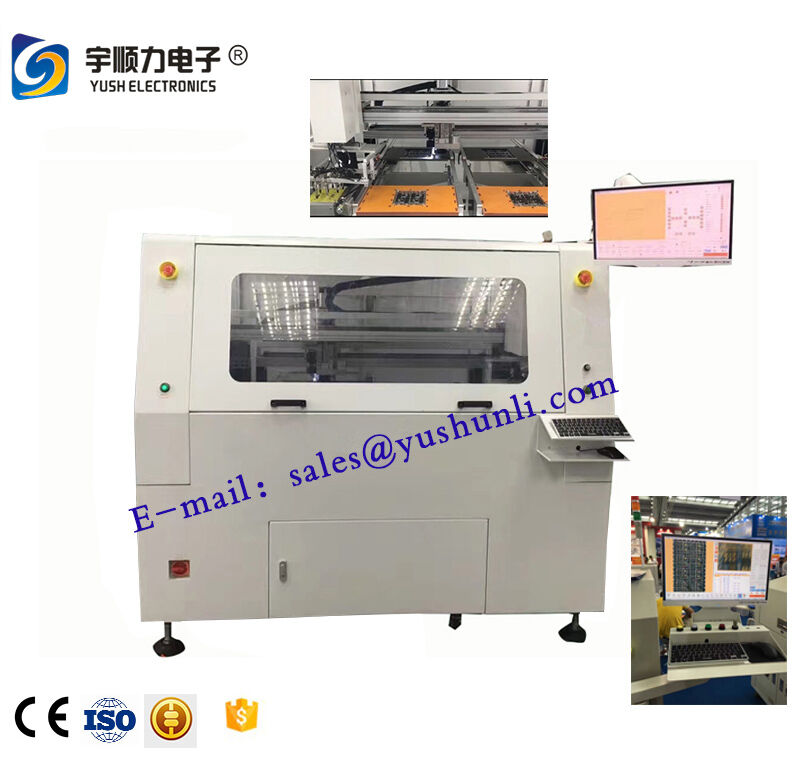

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB router machine with warranty, gold laser cutting machine, PCB depaneling laser cutter


Gewicht:	3500 kg	Stroom:	10 kW
Spanning:	220V, 110V	Lasergolflengte:	355 nm
laserkracht:	10W	Maximaal verwerkingsformaat:	610 mm x 500 mm
XY-platformsnelheid:	50m/min	Positioneringsnauwkeurigheid:	±3um
Herhaalbaarheid:	±1um	Systeemprecisie:	±20um
Scanbereik van de galvanometer:	50 mm x 50 mm	Snijdikte:	<1mm>
Voeding:	AC220V 50 Hz/2,2 kW; 380 V 50 Hz/5,5 kW	Afmetingen:	1818 mm x 2317 mm x 1550 mm
omgevingstemperatuur:	20℃ ±2℃

Gewicht:	3500 kg
Stroom:	10 kW
Spanning:	220V, 110V
Lasergolflengte:	355 nm
laserkracht:	10W
Maximaal verwerkingsformaat:	610 mm x 500 mm
XY-platformsnelheid:	50m/min
Positioneringsnauwkeurigheid:	±3um
Herhaalbaarheid:	±1um
Systeemprecisie:	±20um
Scanbereik van de galvanometer:	50 mm x 50 mm
Snijdikte:	<1mm>
Voeding:	AC220V 50 Hz/2,2 kW; 380 V 50 Hz/5,5 kW
Afmetingen:	1818 mm x 2317 mm x 1550 mm
omgevingstemperatuur:	20℃ ±2℃

PCB Router Machine . Gold Laser Cutting Machine . Laser Cutting

PCB Router Machine • Gold Laser Cutting Machine • Laser Cutting

YASTM-4C Laser Key Cutting Machines

Laser Machine Overview

YUSH Technology is a premium instrument brand specializing in FPC ultraviolet laser cutting machines. Our FPC laser cutting machines are primarily used for precision cutting of CVL, FPC, RF, and thin plywood materials. YUSH Technology is committed to research, development, and production of PCB industry equipment, earning trust from our extensive customer base.

Applications

Our FPC UV laser cutting machines are designed for flexible circuit boards and organic coating precision cutting without requiring molds or protective plate fixation. Utilizing high-energy laser sources with precise beam control enables faster processing speeds and delivers exceptional machining accuracy.

Key Features

Proprietary control software with user-friendly interface, comprehensive functionality, and simple operation
Capable of processing any graphics with synchronized hierarchical completion for different thicknesses and materials
Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
High-performance UV laser with optimal wavelength, superior beam quality, and higher peak power characteristics
Material processing through decomposition and vaporization rather than melting, resulting in minimal post-processing burrs and small thermal effects
Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
Versatile substrate material compatibility including silicon, ceramic, glass, and more
Advanced automation features including automatic correction, positioning, multi-plate cutting, thickness measurement and compensation

Technical Specifications

Laser Source: Solid-state UV laser, 355nm wavelength
Laser Power: 10W
Maximum Processing Format: 610mm × 500mm (24" × 18")
XY Platform Maximum Speed: 50m/min
Positioning Accuracy: ±3μm
Repeatability: ±1μm
System Precision: ±20μm
Galvanometer Scanning Range: 50mm × 50mm
Cutting Thickness: <1mm
Power Requirements: AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Air Requirements: 516m³/h
Dimensions: 1818mm × 2317mm × 1550mm
Weight: 3500Kg
Operating Temperature: 20℃ ± 2℃
Humidity: <60% RH non-condensing
Vibration Specifications: Ground Amplitude <5μm, Vibration Acceleration <0.05g
Ground Pressure: 2200kgf/m²
Control System: Industry-specific equipment with flexible processing software, dedicated motion control card, and IPC control mode
Display & Storage: 17" monitor, 300G+ hard drive
Supported Data Formats: Standard G code, Gerber data, CAD

Quick Specifications

Maximum Board Length	610 × 500mm
Package Size	1818mm × 2317mm × 1550mm
Thickness	1mm
Power Supply	AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Working Air Pressure	516m³/h
Weight	3500kg
Scope of Application	All V-CUT SMD PCB FPC boards
