Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel CNC Laser Cutting Machine, PCB Depaneling Machine with Warranty, China Made Laser Cutting Machine Wheel


Gewicht:	3500 kg	Stroom:	10 kW
Spanning:	220V, 380V	Lasertype:	UV
Lasergolflengte:	355 nm	Maximaal vermogen:	10W /15w/17W
Herhalingsfrequentie:	1-250 kHz	Plaatsprecisie:	± 0,003 mm
Herhalingsprecisie:	±0,002 mm	Werktafelbereik:	500 mm * 500 mm
CCD-precisie:	0,005 mm	Max Working Range:	460 mm*460 mm
XY-snelheid:	50m/min	Positioneringsnauwkeurigheid:	±3um
Snijdikte:	<1mm>

Gewicht:	3500 kg
Stroom:	10 kW
Spanning:	220V, 380V
Lasertype:	UV
Lasergolflengte:	355 nm
Maximaal vermogen:	10W /15w/17W
Herhalingsfrequentie:	1-250 kHz
Plaatsprecisie:	± 0,003 mm
Herhalingsprecisie:	±0,002 mm
Werktafelbereik:	500 mm * 500 mm
CCD-precisie:	0,005 mm
Max Working Range:	460 mm*460 mm
XY-snelheid:	50m/min
Positioneringsnauwkeurigheid:	±3um
Snijdikte:	<1mm>

Shenzhen Stainless Steel Cutting Machine Wheel Made in China . CNC Laser Cutting Machine

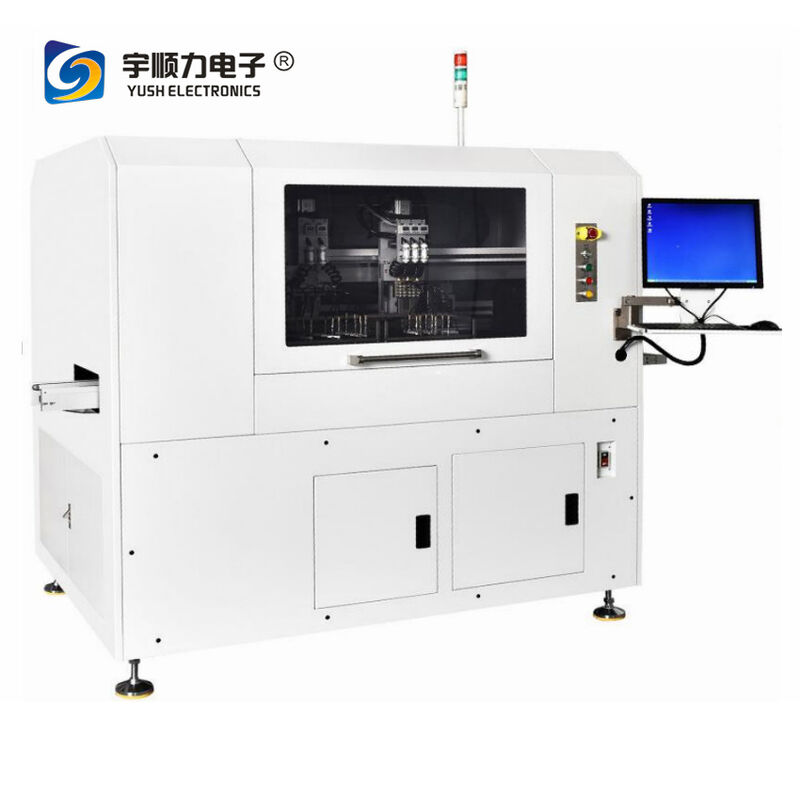

YASTM-4C Stainless Steel Cutting Machine

YUSH Technology FPC ultraviolet laser cutting machine is designed for precision cutting of flexible circuit boards, CVL, RF, and thin plywood materials without requiring molds or protective plate fixation.

Applications

Available for flexible circuit boards and organic coating for precision cutting without mold or protective plate fixation. Using a high-energy laser source with precise beam control ensures improved processing speed and precise machining results.

Key Features

Proprietary control software with user-friendly interface, complete functionality, and simple operation
Capable of processing any graphics with synchronization for complete hierarchical cutting
Optimized optical system design ensures high beam quality and reduced focused spot size for precision
High-performance UV laser with optimal wavelength, beam quality, and peak power characteristics
Vacuum sample fixation eliminates need for mold protection plates, improving processing efficiency
Capable of cutting various substrate materials including silicon, ceramic, and glass
Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation functions

Technical Specifications

Laser Source	Solid-state UV laser, 355nm wavelength
Laser Power	10W
Maximum Processing Format	610mm × 500mm (24" × 18")
XY Platform Maximum Speed	50m/min
Positioning Accuracy	±3μm
Repeatability	±1μm
System Precision	±20μm
Galvanometer Scanning Range	50mm × 50mm
Cutting Thickness	<1mm
Power Requirements	AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Air Requirements	516m³/h
Dimensions	1818mm × 2317mm × 1550mm
Operating Temperature	20℃ ±2℃
Humidity	<60% RH non-condensing

Additional Specifications

Maximum Board Length	610 × 500mm
Package Size	1818mm × 2317mm × 1550mm
Thickness	1mm
Power Supply	AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW
Working Air Pressure	516m³/h
Scope of Application	All V-CUT SMD PCB FPC board

Video Demonstrations

Video Demonstration 1 Video Demonstration 2 Video Demonstration 3 Video Demonstration 4 Video Demonstration 5
