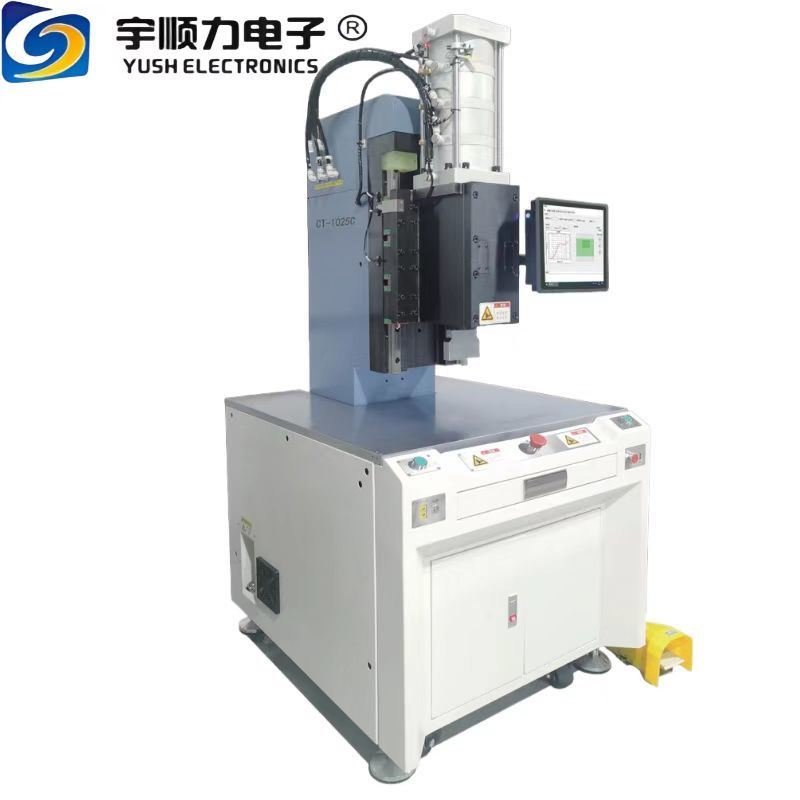

Name: High Efficiency Easy Operation Pneumatic CT-Series Semi-automatic Press-fit Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: CT-1025C
Price: 5800 USD
Availability: InStock

Productdetails

Plaats van herkomst: China, Guangdong

Merknaam: YUSH

Certificering: CE

Modelnummer: CT-1025C

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1

Prijs: USD5800

Verpakking Details: Houten behuizing

Levertijd: 20Work Days

Betalingscondities: L/c, d/a, d/p, t/t

Levering vermogen: 1000

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                pneumatic press-fit machine, semi-automatic SMT assembly machine, CT-series press-fit equipment


Max. drukkracht:	2.5T	Controlemethode:	Alles-in-één pc+plc+cilinder
Effectieve persslag:	15 mm	Hoogtecontrole:	Servomotor
Druk op Snelheid:	0,1 ~ 9,9 s

Max. drukkracht:	2.5T
Controlemethode:	Alles-in-één pc+plc+cilinder
Effectieve persslag:	15 mm
Hoogtecontrole:	Servomotor
Druk op Snelheid:	0,1 ~ 9,9 s

High Efficiency Easy Operation Pneumatic CT-Series Semi-automatic Press-fit Machine

Product Characteristics

All-in-one PC + PLC control, flexible programming, unlimited program capacity
Servo motor controls the depth of press-fit, Z-axis movement accuracy ±0.02mm, maximum movement range 150mm
Four-stage boosting cylinder, maximum press force 25000N, maximum press stroke 15mm
Closed-loop control of pressure stroke, alarm for pressure stroke exceeding limits
Real-time pressure-time curve, alarm record, automatic saving, convenient for later tracing
Controllable pressure, speed, stroke, delay time
Three-level operation authorization design, convenient for operation management
Machine supports multi-stage operation control, meeting precise press-fit operations for different products
Wide adaptation range for PCB, special customization available as needed
Automatic switching of press-fit programs for multiple connectors on the entire board, with color display of press-fit positions, easy operation

Technical Parameters

Parameter	Specification
Max. press force	2.5T
Control method	All-in-one PC+PLC+Cylinder
Effective press stroke	15 mm
Height control	Servo motor
Press speed	0.1~9.9 s
Positional accuracy	±0.01 mm
Press force accuracy	±5%
Control logic	Press force, displacement, speed, sampling, angle, delay time, etc.
Press block size	80*25 mm
Worktable size	860x750 mm
Air floatation support	Yes
Safety device	Emergency stop button
Positioning method	Manual positioning
Power supply	AC220V,500W
Size	750x930x1600 mm
