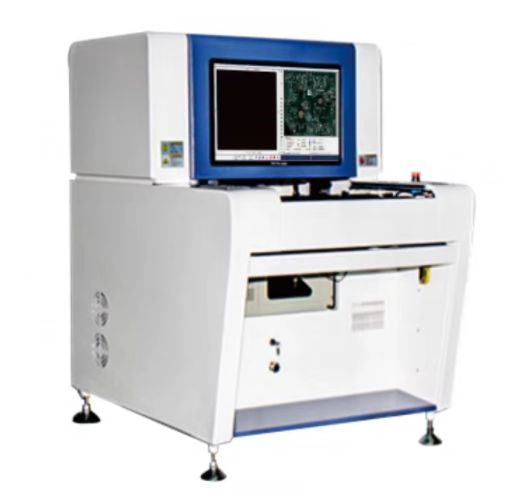

Name: High Quality and High Efficiency Standard Offline AOI
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-A410
Price: 35000 USD
Availability: InStock

Productdetails

Plaats van herkomst: China, Guangdong

Merknaam: YUSH

Modelnummer: YS-A410

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1

Prijs: USD35000

Levertijd: 20Work Days

Betalingscondities: L/C, D/A, D/P, T/T, Western Union

Levering vermogen: 1000

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                                                Standard Offline AOI machine, Auto Insertion Machine with warranty, High Efficiency AOI inspection system


Spanning:	220V	Power (W):	6 kW
Gewicht:	310 kg	Dimensie (LWH):	86810331340 mm
Modelnummer:	YS-A410

Spanning:	220V
Power (W):	6 kW
Gewicht:	310 kg
Dimensie (LWH):	86810331340 mm
Modelnummer:	YS-A410

High Quality and High Efficiency Standard Offline AOI

Product Specifications

Voltage	220V
Power	6KW
Weight	310KG
Dimensions (L×W×H)	868 × 1033 × 1340mm
Model Number	YS-A410

Product Features

Economical and practical AOI solution
High precision detection platform design
Fast programming debugging integration
Automatic recognition of Top and Bottom sides
Professional SPC system

Technical Parameters

Inspection	Using multiple algorithms synthetically such as WIDM, Color Image contrast technology, Color extracting technology, similarity, two-value handling technology, OCR/OCV and so on
Camera	Colour camera: 20 μm (15μm for Optical)
Lamp-house	Ring RGB LED flash lamp-house
Image Processing Speed	0201 Chip - <10ms Per-image Time - <170ms
Inspection Items	Paste Printing Defects: Misaligned, overflow, insufficient, pasting open, stain Component Defects: Missing, misaligned, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged Solder Defects: Overflow, insufficient, short solder, stain
Anti Static Measures	Anti-static electric outlet, anti-static wreath
PCB Size	25 × 25 mm - 480 × 330mm (Can be customized)
Machine Dimensions	868 × 1033 × 1340mm
Power Supply	AC220V ±10%, single phase 50/60HZ, power consumption 600W
Weight	~310kg
PCB Thickness	0.5mm-5mm
PCB Warp Tolerance	± 2mm
Computer	CPU: Intel dual-core, Memory: 4G, Hard disk: 1T
Display	22-inch TFT
Component Clearance	TOP <28mm, BOT <75mm
Characteristics	WDM, study OK template, automatically set template imaging, identify data and error numerical value
Working Environment	Temperature 10-40℃, humidity 30-80%RH
