Name: High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-XD160
Price: 86000 USD
Availability: InStock

Productdetails

Plaats van herkomst: Guangdong

Merknaam: YUSH

Certificering: CE

Modelnummer: YS-XD160

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1

Prijs: USD86000

Verpakking Details: houten kist

Levertijd: 20Work Days

Betalingscondities: L/C, D/A, D/P, T/T, Western Union

Levering vermogen: 1000

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                die casting X-ray inspection machine, PCB depaneling X-ray machine, high efficiency X-ray inspection


Totaal vermogen:	Maximaal 1,3 kW	Buisspanning:	60~160KV
Buisstroom:	0,2~5,0mA	Brandpuntgrootte:	0,5 mm

Totaal vermogen:	Maximaal 1,3 kW
Buisspanning:	60~160KV
Buisstroom:	0,2~5,0mA
Brandpuntgrootte:	0,5 mm

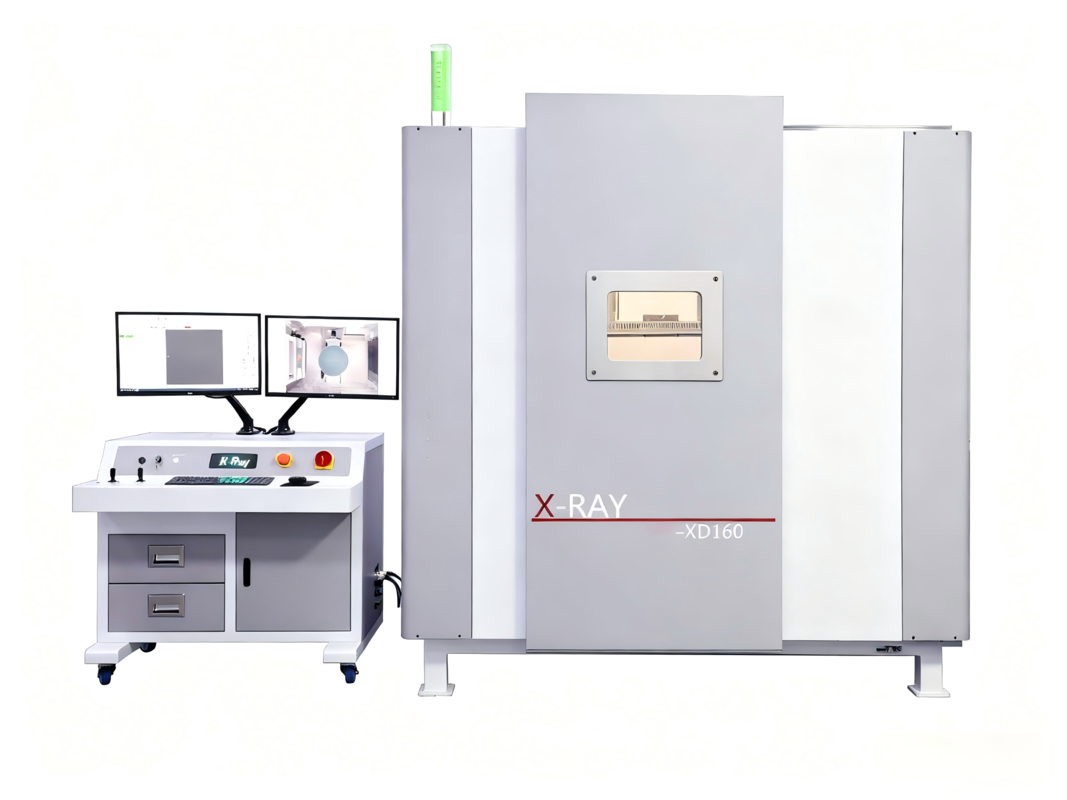

High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine

High Quality and High Efficiency YS-XD160 Die Casting X Ray Inspection Machine

The YS-XD160 Die Casting X Ray Inspection Machine provides high-quality inspection capabilities for various metal castings with advanced imaging technology and ergonomic design.

Key Features

Clearly detects defects such as sand holes and cracks inside aluminum castings
Easy operation with quick setup (5-10 minutes for new product detection standards)
Programmable, measurable, and image-saving functions based on ergonomics
Safety interlock system prevents operation when doors are open
360° rotating and moving multi-functional load platform
Versatile, customizable tooling operations
C-type swing arm six-axis linkage detection method with no dead angle detection
Real-time dynamic imaging and monitoring during inspection
Multi-panel modular observation point setting

The equipment is primarily used for inspecting aluminum castings, iron castings, automotive parts, hardware, and refractory materials. Utilizing Automated Optical Inspection technology with X-ray fluoroscopy, it converts visible light images, acquires image information through flat panel detectors, and provides high-definition imaging with measurable dimensions, data storage, and automatic programming for step detection.

Technical Specifications

X-ray leakage amount	≤1usv/h
Dimension	L2030×W1600×W2100mm
Stage size	φ500mm
Imaging area	433.7mm*433.7mm
Resolution	2816*2816/ 3.24Lp/mm 15fps
Max Tilt Angle	±30°
