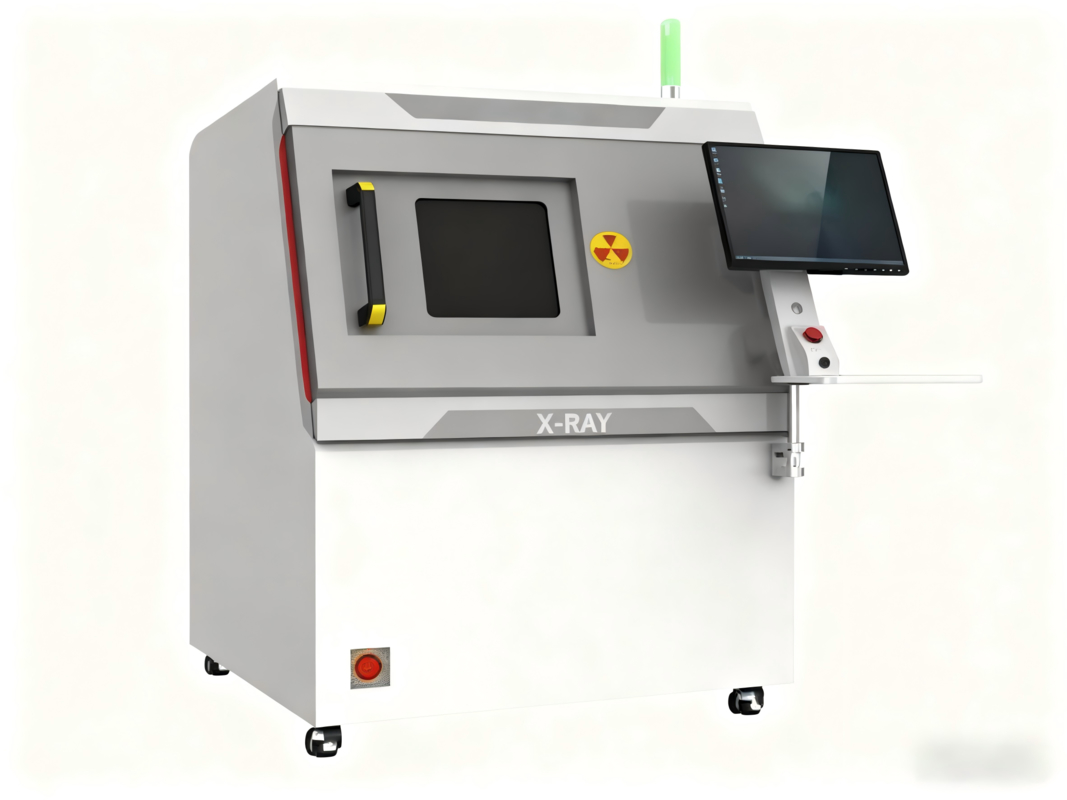

Name: High Quality and High Efficiency Microfocus X-RAY Inspection System
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-X6600
Price: 43000 USD
Availability: InStock

Productdetails

Plaats van herkomst: Guangdong

Merknaam: YUSH

Modelnummer: YS-X6600

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1

Prijs: USD43000

Levertijd: 20Work Days

Betalingscondities: L/C, D/A, D/P, T/T, Western Union

Levering vermogen: 1000

Vind de beste prijs

Productdetails

Productbeschrijving

Markeren:
                                                                                                                                                                                Microfocus X-RAY inspection system, High efficiency PCB depaneling machine, X-RAY inspection system with warranty


Buisspanning:	40-90 kV	Buisstroom:	10-200uA (software beperkt tot 89uA)
Weergavegebied:	130 mm*130 mm	Herhaalde testnauwkeurigheid:	3μm

Buisspanning:	40-90 kV
Buisstroom:	10-200uA (software beperkt tot 89uA)
Weergavegebied:	130 mm*130 mm
Herhaalde testnauwkeurigheid:	3μm

High Quality and High Efficiency Microfocus X-RAY Inspection System

Function

X-ray tube and detector can move along Z direction
Speed of table moving along X-Y direction can be adjusted
High-definition digital flat panel detector
Max Inclined Angle is 60°, samples can be observed with a unique perspective
Fault less than 2.5μm can be detected
High detection repeat accuracy
Powerful CNC Measuring Function, can test automatically, testing program can be edited
Large inspection space, can put various large-sized samples
The table can carry 10KG items
Large navigation view, table will move to where you click the mouse

Advantages

Larger effective detection range, improving the magnification and the detection efficiency of the product
Easy to identify the side defects of the product and achieve no dead angle detection
Easy to distinguish the gold wire bending and break of the semiconductor package
Suitable for large-scale inspection and improve detection efficiency
Large table for large industrial control boards, ultra-long LED strips, and electronic products for various fields
Very easy to operate, quickly find item defects and improve detection efficiency
