|PCB-Materiaal::||FR1, FR4, MCPCB||PCB-grootte::||450*350mm|
|Het verpletteren van Beetje::||0.8/1.2/1.5/1.8/2.0mm||Manipulatorherhaalbaarheid:||±0.02mm|
|Raad het Plaatsen:||Dubbel werkstation met nestinrichting of speldinrichting||Dimensies:||1220mm*1450mm*1420mm|
pcb routing machine,
pcb separator machine

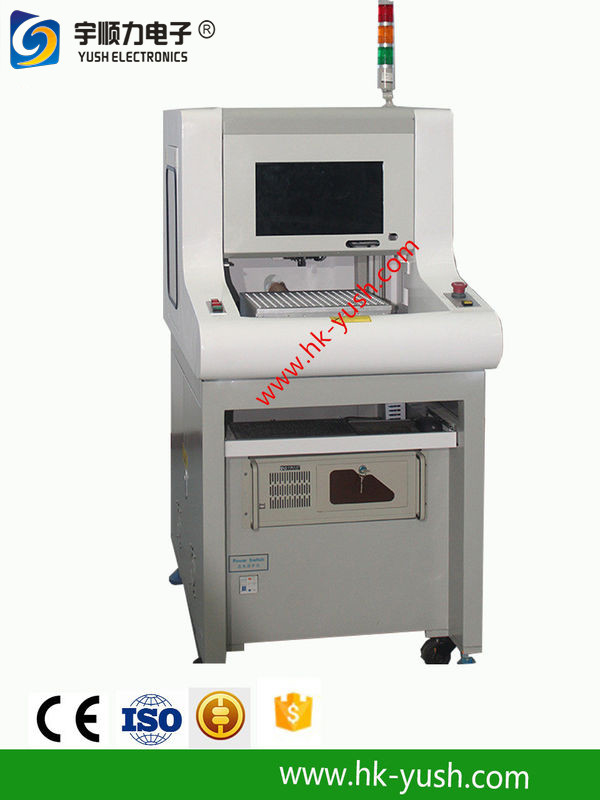

PCB Router PCB Depaneling Equipment with Upper Vacuum Cleaner
The best sulotion for PCB depaneling
Rotational speeds adjustable
The screen is friendly and can be switches between Chinese and English
Value matching is accurate and instruction is conveniently
|Standard working area||320*320mm|
|Board Positioning||Dual workstation with nest fixture or pin fixture|
|Panel Location||Located by tooling holes or edges of PCB|
|Spindle motor||KAVO Spindle|
|Dust filtration system||3KW Vacuum Cleaner|
|Vision system||High resolution CCD video camera|
|Programming||Vision assisted point to point manual teaching|
|Editing Function||Dry run vision assisted / test run mode|
Why choose us
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3..Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
